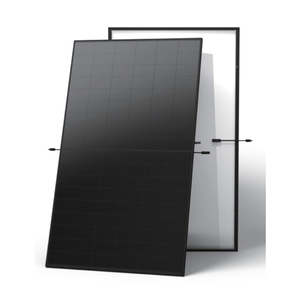

Vertex S+ 505w All Black Dual Glass N-Type Solar Module, Black Frame
The Trina Solar Vertex S 505W (TSM-505NEG18R.25) is a premium N-Type i-TOPCon dual-glass solar panel, designed for residential rooftops and commercial solar installations. Offering up to 23.2% efficiency and a sleek all-black design, this panel delivers superior performance, durability, and style. Built on Trina’s 210 mm i-TOPCon platform, it ensures lower LCOE, reduced BOS costs, and faster system payback.
With 25-year product warranty and 30-year power performance guarantee, the Vertex S is one of the most reliable long-term investments for solar energy generation in New Zealand and Australia.
Modules per pallet: 36 pieces
$150 Split pallet fee will apply on any partial pallet quantity ordered.
TSM-XXXNEG18R.25 Data Sheet Key Features
- High Power Output – up to 515 W with industry-leading efficiency of 23.2%.
- N-Type i-TOPCon Technology – improved light capture, lower resistance, and higher durability.
- Dual-Glass Construction – less prone to micro-cracks and backsheet damage, increasing reliability.
- Superior Durability – withstands up to 5,400 Pa snow load and 2,400 Pa wind load.
- Excellent Low-Light Performance – higher yield in mornings, evenings, and cloudy conditions.
- High System Voltage – compatible with 1500 V DC systems for flexible array design.
- Long Warranties – 25 years product and 30 years power output guarantee for peace of mind. Technical Specifications Specification Value Model / SKU TSM-505NEG18R.25 Power Output (Pmax) 505 W (range 490–515 W) Module Efficiency Up to 23.2% Dimensions (L × W × H) 1961 × 1134 × 30 mm Weight 23.5 kg Cell Type N-Type i-TOPCon Monocrystalline Glass 1.6 mm dual-glass (front back) Frame Black anodized aluminium alloy Junction Box IP68, factory fitted Connectors Stäubli MC4-EVO2 Cable 4.0 mm², length 350/280 mm Maximum System Voltage 1500 V DC Max Series Fuse Rating 30 A Operating Temperature −40 °C to 70 °C Temperature Coefficient (Pmax) −0.29% / °C Mechanical Load Rating 5400 Pa (snow) / 2400 Pa (wind) Warranty 25-year product, 30-year performance
