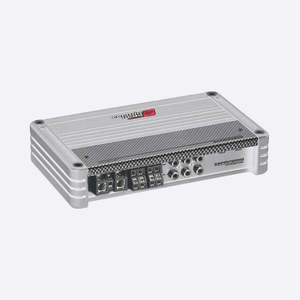

Cerwin Vega SRPM700.4DW 700W RMS Class-D 4-Channel Marine Amplifier
• 100 Watts RMS x 4 @ 4 ohms
• 150 Watts RMS x 4 @ 2 ohms
• Conformal Coating Protects Against Moisture
• Aluminum Heatsink
Authorized dealer
General Features:
- Cerwin Vega SRPM700.4D
- Class-D Full Range 2-Ohm Stable 4-Channel Amplifier
- RMS Power Rating:
- 4 ohms: 100 watts x 4 chan.
- 2 ohms: 150 watts x 4 chan.
- 1 ohm: ------------N/A-----------
- Bridged, 4 ohms: 300 watts x 1 chan.
- Total power output: 700 watts
- Conformal coated PCB to protect against dust, vibration and moisture
- Top-mounted controls allow for fast, accurate adjustments
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Soft start turn-on
- 4/3/2 channel operation
- Crossover, 40 - 400 Hz, 12dB slope
- Speaker-level (high-level) inputs
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink
- Advanced rollback heat protection
- Input sensitivity:
- Frequency Response: 10 - 33,000 Hz
- Total Harmonic Distortion (THD): 0.07%
- Signal to Noise Ratio: -77.4dBA
- Variable high-pass filter: 40 - 400 Hz, 24 dB/octave
- Variable low-pass filter: 40 - 400 Hz, 24 dB/octave
- 8 gauge power and ground wiring is recommended for installation.
- Color: White
- Dimensions: 5.27"W x 9.44"L x 1.75"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
-
