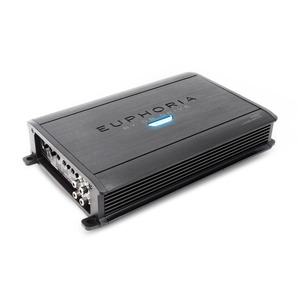

DB Euphoria EF475 4 Channel Class A/B Full Range Technology / 800 Watts Amp

Euphoria is DB Drive's higher end brand which has been in the works over the past couple years. These amplifiers are designed in house, everything screams great build quality. The cases of the amplifiers are thick black anodized aluminum, no flimsy sheet metal. They have tiffany rca inputs and are equipped to handle active speaker configurations. Great power in a small chassis while utilizing class a/b architecture. SPECIFICATIONS:

- Dynamic Power 800 watts
- 4 x 75 watts @ 4 ohm stereo
- 4 x 95 watts @ 2 ohm stereo
- 2 x 300 watts @ 2 ohm bridged
- Power Supply Input Voltage: 11VDC to 15VDC
- THD (100Hz @ 1Ω): 0.04%
- Bandwidth (-3 dB): 18Hz- 22KHz
- Damping Factor (100Hz @ 4Ω): 100
- S/N ratio ( as weighted @ 1 Volt): 99db
- Input Sensitivity:.20MV – 7.0V RMS
- Minimum Load Impedance: 2Ω
- Input: Pre in RCA
- Output: Pre out RCA Full Range
- Channel 1-2 filter slope: 12dB
- Channel 1-2 filter range: (FR = Un-filtered) (HP = 50Hz – 4KHz)
- Channel 3-4 filter slope: HP @ 12db St. , LP/BP @ 12dB St. or LP/BP
- Channel 3-4 filter range: (HP = 50Hz ~ 4KHz) (BP = 32Hz ~ 4KHz) (LP = 32Hz ~ 250Hz) DIMENSIONS:

- Length: 10.8" / 274mm
- Width: 7" / 178mm
- Height: 2.28" / 58mm FEATURES:

- 4 Channel Class A/B Full Range Technology
- 2 Ω Stereo load Capability
- Audiophile Grade tiffany RCA connectors
- Full Range RCA output connections
- Variable High-Pass , Band-Pass or Low-pass crossover filters
- Bridgable outputs @ 4Ω load
- Remote Dash Bass Control
- 4 gauge Power cable input connectors
- Double Sided Circuit tablet
- Compatible with any 4/2Ω Loudspeaker
