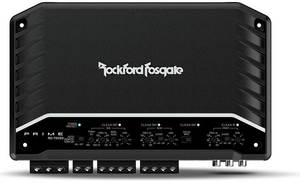

Rockford Fosgate R2-750X5 Prime 750RMS 5-Channel Amplifier

The R2-750X5 amplifier is a 750 watt, full-range class-D, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono with a subwoofer channel that can be run at 4Ω or 2Ω. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.

The Prime Series were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated," easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems.

Features:

- Balanced Differential Inputs with RCA Pass Through Outputs
- High Level Input Capable
- Defeat able Auto Turn On Circuit
- Features C.L.E.A.N. Set-up
- 2/4/5 Channel Input Selection Switch
- R.L.C. Remote Level Control
- Variable Infrasonic Filter
- Front, Rear and Sub Variable Input Gain adjustment level
- Continuously Variable On Board Punch EQ
- Top Mounted Control Panel
- Short Circuit & Over Current Protection
- CEA-2006 Compliant & CE Compliant
- Cast aluminum heat sink
- Full Range Class D
- Rollback Protection
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

Specifications:

- CEA-2006 Compliant
- CEA-2006 Power Rating
- 50W x 4 200W x 1 @ 4Ω
- ≤1.0% THD N
- Number of Channels 5
- Total Power (Sum of Rated Power) 750 Watts
- Rated Power (RMS Continuous Power) 50 Watts x 4 200 Watts x 1 @ 4Ω / 100 Watts x 4 350 Watts x 1 @ 2Ω / 200 Watts x 2 N/A @ 4Ω Bridged/Mono
- Dynamic Power (PVC/PowerCube®) 70 Watts x 4 241 Watts x 1 @ 4Ω / 114 Watts x 4 426 Watts x 1 @ 2Ω / 234 Watts x 2 N/A @ 4Ω Bridged/Mono
- Bridgeable Yes
- Frequency Response 20 Hz - 20 kHz
- Input Sensitivity Low-Level: 150 mV - 4 V / High-Level: 450 mV - 12 V
- Circuit Topology Class Class D
- Efficiency (average)
- Total Harmonic Distortion (THD Noise) Front/Rear 4Ω
