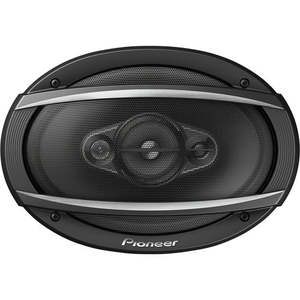

PIONEER TSA6960F 6 x 9” 450 watts 4-way Speaker System

Pioneer’s next generation of TS-A series speakers offer Carbon & Mica reinforced IMPP cone. This combined with a new magnetic circuit and long symmetrical voice coil make both rich deep bass and low distortion possible. Newly designed speaker adapters offer a wide range of installation options and help to ensure a well-controlled sound. A design change has been applied which also removes the lead wire connection from the speaker face, giving a new clean look and reduces the risk of shorts and signal noise.

- Size: 6 x 9" (163mm x 237mm) 4-Way
- Max Music Power (Nominal): 450W MAX (90W Nom)
- Frequency Response: 35Hz - 24kHz (-20dB)
- Sensitivity: 89dB (±1.5dB)(1W/1m)
- Impedance: 4?
- Mounting Depth: 72mm
- Mounting Depth with Mount Adapter: 62mm
- Cut Out Dimensions: 153mm x 222mm
- Surround Material: Elastic Polymer
- Woofer Magnet Material: Y-35
- Woofer Basket Material: Metal
- Woofer Magnet Weight: 320g
- Woofer Cone Material: IMPP Composite
- Tweeter Type: PIEZOELECTRIC x 2
- Tweeter Diaphragm Material: PET (t=75µm) 6 x 9" 4-way Speaker System. • 450 Watts Max Power (90 Watts Nom). • New Carbon & Mica reinforced IMPP Cone Design. • Pioneer “Open & Smooth"™ Sound Concept. • Newly designed speaker adapters included.
