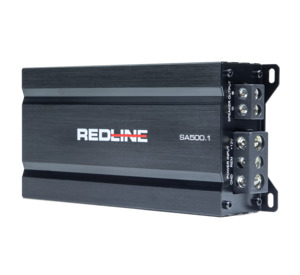

DD AUDIO RL-SA500.1 500W RMS MONOBLOCK CLASS-D AMPLIFIER

SA500.1 Redline 1 x 500W
The DD Audio SA500.1 is a 1-Ohm Stable Monoblock Subwoofer Amplifier with a continuous output power of 500 watts. Even though the SA Series amplifiers are very compact they still employ set screw power and speaker terminals, different input sections, and heavy-duty aluminum heatsinks.

Product Highlights

FEATURES:

- MOSFET POWER SUPPLY AMPLIFIER
- 4 GAUGE SET SCREW POWER TERMINALS
- 12 GAUGE SET SCREW SPEAKER TERMINALS
- VARIABLE 12DB/OCT CROSSOVERS
- REMOTE SUBWOOFER CONTROL (SA500.1)
- 5-WAY PROTECTION: SPEAKER SHORT, THERMAL, OVERLOAD, HI/LOW VOLTAGE, DC OFFSET

SPECIFICATIONS:

- CLASS: D-CLASS AMPLIFIER
- OPERATING VOLTAGE: 9-16V
- TEST VOLTAGE: 14.4V
- OUTPUT CHANNELS: 1CH
- CONT. WATTAGE @ 4 OHM: 250W
- CONT. WATTAGE @2 OHM: 390W
- CONT. WATTAGE @1 OHM: 500W
- DYNAMIC WATTAGE: 1000W
- MAX CURRENT DRAW - AMPS: 50A
- RCA INPUT SENSITIVITY - VOLTS: 6V - 0.25V
- HIGH LEVEL SENSITIVITY - VOLTS: 20V - 1.1V
- S/N RATIO: 70DB
- DAMPING FACTOR: 10 - 250
- THD: 0.1%
- BOOST LEVEL: 12DB @ 45HZ
- SUBSONIC FILTER - HZ: 10 - 50 LOW PASS FILTER - HZ: 35 -250
- REMOTE SUBWOOFER CONTROL: YES
- POWER WIRE GAUGE - IN: 4
- SPEAKER WIRE GAUGE - OUT: 12
- DIMENSIONS: 180 X 96 X 43MM
