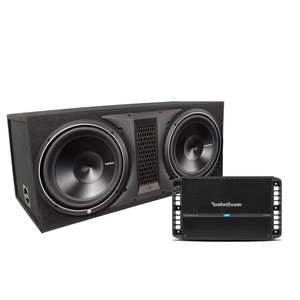

Rockford Fosgate R1200-1D + P32X12 Dual 12" Punch P3 Series Loaded PACKAGE
Rockford Fosgate P3-2X12 Dual 12" 2400W (1200W RMS) 1 ohm Car Subwoofer Enclosure
Features:
Woofer Quantity2
Woofer Size12"
Woofer SeriesPunch P3 (P3D4-12)
Nominal Impedance (ea)1-Ohm
Internally wired to create a 1-Ohm amplifier load
Power Handling (Watts RMS)1200 Watts RMS
2400 Watts Max
Enclosure TypeVented
Enclosure Material5/8" MDF (Medium Density Fiberboard)
Speaker ConnectorUp to 10 AWG compression terminals
Dimensions
Box (H x W x D)
Wedge (H x W x D1 x D2)
Dimensions
Box (H x W x D)
Wedge (H x W x D1 x D2)15.125" x 33.875" x 15.75"
(38.4cm x 86cm x 40cm)
The PRIME R1200-1D is an ultra-efficient mono amplifier that can produce 1,200 Watts into a 1-Ohm load without taxing the electrical system. The frequency response of the R1200-1D is optimized exclusively for use with subwoofers.
Product Features:
Prime Series Monoblock Class D Car Amplifier
RMS Power Rating:
4 ohms: 400 watts x 1 chan.
2 ohms: 800 watts x 1 chan.
1 ohm: 1200 watts x 1 chan.
Total power output: 1200 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
Remote Punch level control included
LED power (blue) and protect (red) indicators
Variable Bass Boost (0 to 18 dB bass boost at 45 Hz)
Soft Start Turn-on
Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
Heavy duty cast aluminum convection cooled heatsink for extreme heat dissipation
Nickel-plated RCA level block inputs
Nickel-plated screw terminals
Input sensitivity:
Low level: 150mV-5V
Variable low-pass filter (50-250 Hz, 12 dB/octave)
Infrasonic filter (15-40 Hz, 12 dB/octave)
Damping factor: >200
CEA-2006 compliant amplifier
Frequency response: 20-250 Hz
100A In-line fuse recommended
Dimensions: 6-3/4"L x 11-1/16"W x 2"H
