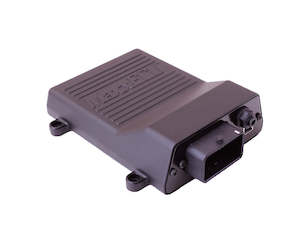

MaxxECU Street

The Perfect ECU for those no frills budget installs while still offering those motorsport features you love.

- Internal wideband
- 4bar Map sensor
- 8MB memory for up to 1000Hz internal logging
- 140x134x42mm (including mounting points, excluding connector)
- Aluminium casing weighing 520g

Wired Outputs

- 6x injectors outputs. High impedance only
- 6x ignition outputs. 5V signal to drive ignition modules, CDI units or coils
- 4x outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights,. GPO 1-3 (2A), GPO 8 (5A)

Wired Inputs

- 4x Temperature
- 3x Analog inputs
- 2x Trigger
- 2x Digital inputs
- 1x Wideband
- 1x CANbus

Kit Options

Basic €" ECU, Plug and pins, Vacuum hose adaptor, USB cable, ECU Pinout sheet.
Standard €" ECU, 3m loom with additional cable, Push lock hose and fittings, USB cable, ECU Pinout sheet.
Premium €" ECU, 3m loom with additional cable, Push lock hose and fittings, LSU 4.2 and connector, USB cable, ECU Pinout sheet.
