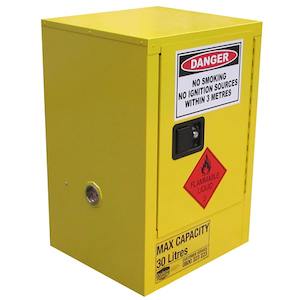

Flammable Liquid Storage Cabinet (Metal)
- Flammable liquid storage cabinet.
- Suitable for storage of class 3 flammable or combustible liquids such as paint, solvents, petrol, thinners, kerosene, turpentine, white spirits, alcohol, ethanol, diesel, linseed oil and more.
- Manufactured to meet AS 1940 standards for the storage and handling of flammable and combustible liquids.
- Key features include:
- Double steel walls
- Self-closing and latching door
- 150mm deep liquid light sump
- Recessed door handle with key lock
- 50mm vent bungs with flash arresters
- Static earthing connection
- Adjustable shelves
- Adjustable feet
- Classification labels
- Continuous piano hinge
30L Cabinet
- Capacity: 30L
- Doors: 1
- Shelves (Incl. Base Level): 2
- External Dimensions: 770mm (H) x 515mm (W) x 465mm (D)
- Internal Dimensions: 525mm (H) x 420mm (W) x 370mm (D)
60L Cabinet
- Capacity: 60L
- Doors: 1
- Shelves (Incl. Base Level): 2
- External Dimensions: 1065mm (H) x 515mm (W) x 465mm (D)
- Internal Dimensions: 820mm (H) x 420mm (W) x 370mm (D)
100L
- Capacity: 100L
- Doors: 2
- Shelves (Incl. Base Level): 1
- External Dimensions: 770mm (H) x 935mm (W) x 620mm (D)
- Internal Dimensions: 495mm (H) x 840mm (W) x 530mm (D)
160L
- Capacity: 160L
- Doors: 2
- Shelves (Incl. Base Level): 2
- External Dimensions: 1295mm (H) x 1115mm (W) x 500mm (D)
- Internal Dimensions: 1015mm (H) x 1020mm (W) x 415mm (D)
250L
- Capacity: 250L
- Doors: 2
- Shelves (Incl. Base Level): 3
- External Dimensions: 1825mm (H) x 1115mm (W) x 500mm (D)
- Internal Dimensions: 1545mm (H) x 1020mm (W) x 415mm (D)
250L Oversized - For larger bulky containers
- Flammable liquid storage cabinet.
- Suitable for storage of class 3 flammable or combustible liquids such as paint, solvents, petrol, thinners, kerosene, turpentine, white spirits, alcohol, ethanol, diesel, linseed oil and more.
- Manufactured to meet AS 1940 standards for the storage and handling of flammable and combustible liquids.
- Key features include:
- Double steel walls
- Self-closing and latching door
- 150mm deep liquid light sump
- Recessed door handle with key lock
- 50mm vent bungs with flash arresters
- Static earthing connection
- Adjustable shelves
- Classification labels
- Continuous piano hinge
- Capacity: 250L (maximum allowable for indoor cabinet under Legislation)
- Doors: 2
- Shelves (Incl. Base Level): 3
- External Dimensions: 1825mm (H) x 1440mm (W) x 585mm (D)
- Internal Dimensions: 1550mm (H) x 1345mm (W) x 494mm (D
Additional shelves can be purchased separately
Notes: For single door cabinets, the internal height is taken from the top of the sump sill/bottom shelf to the ceiling. For total external width measurement, add 6mm vent bung for tight clearance locations.
