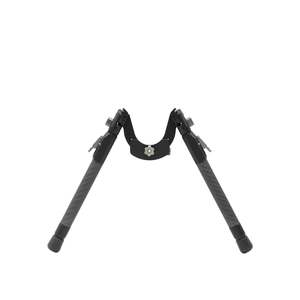

EVOLUTION BIPOD GENII
The Evolution Bipod's groundbreaking mechanism rotates around the rifle barrel axis, not under the stock, for an incredible natural feel.
The Tactical Evolution Bipod boasts an innovative sealed roller bearing mechanism which is resistant to dust and liquid, allowing for seamless rotation of the Bipod around the rifle barrel - a feature not seen in any other bipod of its kind.
- Adjustable cant with friction lock.
- Adjustable leg length.
- Adjustable leg rake angle.
Configurations
Available in 230mm and 180mm leg lengths in 7075T6 Aluminium with Carbon Fibre sleeves, the Evolution Bipod is adaptable for any scenario the professional or recreational user could find themselves confronting. Available adapters are QD Picatinny and M-Lok. Optional 50mm Leg Extensions available if extra height is required. Key Points:
- Revolutionary sealed roller bearing design for incredibly smooth cant action.
- Underslung mounting position for better recoil control and lower center of gravity.
- Adjustable cant with friction lock.
- Lightweight construction for portability on extreme hunts or weight restricted environments.
- Successfully tested up to.338 Lap Mag caliber on operations with active Special Forces.
- Multiple selectable leg lengths, leg angles and additional leg extensions for customizable height and footprint.
- M-Lok bipod and QD Picatinny adapter compatibility for versatile mounting options.
- Carbon fiber and 7075T6 aluminum materials for the highest possible strength to weight ratio.
- Machined and hand assembled entirely in Tier One's state-of-the-art machine shop in the UK.
DESIGN
The Tier One Evolution M Lok Bipod has a revolutionary sealed roller bearing design and underslung mounting position for unbeatable recoil control. It's lightweight and ensures first-shot accuracy in any foreseeable application. A true innovation, delivering remarkable results.
- The Evolution Tactical Bipod utilises a unique under-slung design giving it a lower centre of gravity, perfect for better recoil management.
- It also features a unique rotational mechanism using sealed roller bearings which are impervious to sand, grit and dirt. This is what gives the bipod a silky smooth movement as it rotates around the barrel of the rifle.
- The legs of the Evolution are pull-down action with several different detente positions. They can also be deployed at a 45degree rake.
- The feet are designed to be interchangeable in the field by using the tip of a bullet, and the picatinny adapter can be tightened to fit any picatinny rail regardless of the varying tolerances. WHAT HEIGHT DO I NEED?
Most shooters are more comfortable with the 230mm/9" version.
- 230mm
- Ground to adapter underside, legs stowed: 135mm / 5.3"
- Legs extended: 238mm / 9.37"
- 180mm
- Ground to adapter underside, legs stowed: 90mm / 3.5"
- Legs extended: 145mm / 5.7"
Optional 50mm Leg Extensions are available if extra height is required (see accessories via link at the bottom of this page). HOW IS IT MOUNTED?
The bipod must be mounted at the extreme forend of your stock to enable the body to rotate around the barrel. It does not revolve around the stock.
For M-Lok, make sure you have an M-Lok slot right at the extreme end of your handguard/chassis. Some M-Lok rails have a blank slot at the end which will prevent you from being able to mount the Evolution M Lok Bipod far enough forward to function correctly.
Ensure that there is nothing forward of the mounting point which might obstruct the M Lok bipod. E.g. A sling stud. Same goes for the QD Picatinny.
MATERIALS
The Evolution Tactical Bipod evolved from it’s brother, the hugely popular Tactical Bipod and was also designed to provide the strength and stiffness needed for long range shooting, with the weight savings of a smaller, lighter bipod.
We achieved this by using space age materials including very high quality carbon fiber and 7075T6 aluminum, one of the toughest and lightest alloys available anywhere.
The result is a carbon fiber and aluminum bipod that is successfully tested up to.338 Lap Mag. calibre.
Nothing in the market offers the same unique blend of toughness, linear recoil control and weight reduction, making this bipod a no brainer for a tactical operator, target shooter or hunter looking to save weight and achieve perfect field performance. CONSTRUCTION
Designed from scratch by us in our state of the art facilities in the UK, all parts contained in the carbon fiber bipods are
