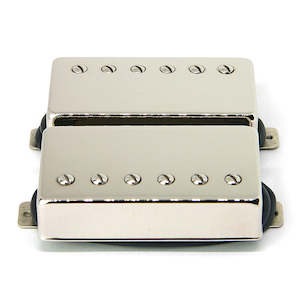

Regular output humbucker pickup set

- NECK PICKUP POLE SPACING: 50mm (1.97")
- BRIDGE PICKUP POLE SPACING: 53mm (2.09")
- NECK PICKUP RESISTANCE: ≈ 7.4 kΩ
- BRIDGE PICKUP RESISTANCE: ≈ 8.4 kΩ
- NECK PICKUP INDUCTANCE: ≈ 5.2 Henries
- BRIDGE PICKUP INDUCTANCE: ≈ 6.5 Henries
- COIL WIRE: 42-AWG
- WINDING: Scatter Wound
- POTTED: Yes
- POLE PIECES: Vintage PAF Fillister Screws Nickel Plated
- BASEPLATE: Short Leg (1/4") Nickel Plated
- MOUNTING SCREWS AND SPRINGS: Included (30mm)
- NECK HOOK-UP WIRE: Shielded 4-conductor Wire (280mm)
- BRIDGE HOOK-UP WIRE: Shielded 4-conductor Wire (240mm)

DC Resistance and inductance can differ within 5%.

For series wiring, connect WHITE and GREEN wires.
