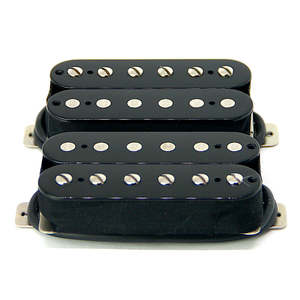

Tapped humbucker pickup set

Enhance your guitar’s tone with this high-quality, handmade tapped humbucker pickup set. Featuring both regular and high output in one design, it delivers smooth vintage warmth or powerful, high-gain punch on demand. Versatile and dynamic, this set offers exceptional clarity, sustain, and expression—perfect for any style or performance setting.

SPECIFICATION

NECK PICKUP POLE SPACING: 50mm
BRIDGE PICKUP POLE SPACING: 53mm
NECK PICKUP RESISTANCE: 7.2/9.5 kΩ
BRIDGE PICKUP RESISTANCE: 8.4/11 kΩ
NECK PICKUP INDUCTANCE: 3.8/6.0 H
BRIDGE PICKUP INDUCTANCE: 4.6/7.1 H
COIL WIRE: 43-AWG Enamel
WINDING: Scatter Wound
POTTED: Yes - 20% Bee Wax/80% Paraffin Wax
POLE PIECES: Vintage PAF Fillister Screws Nickel Plated
BASEPLATE: Short Leg (1/4") Nickel Plated
MOUNTING SCREWS AND SPRINGS: Included (30mm)
NECK HOOK-UP WIRE: Shielded 4-conductor Wire (280mm)
BRIDGE HOOK-UP WIRE: Shielded 4-conductor Wire (240mm)

DC Resistance and inductance can differ within 5%.
For series wiring, connect WHITE and GREEN wires.
