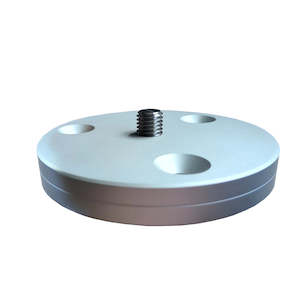

Magmo Column Monument Adapter, Masonry Plate with 5/8th Thread

AVAILABILITY: This item is usually dispatched same day
Anodised aluminium plate with two ways to mount. Countersunk screw mounting holes in the top and threaded holes for anchor studs in the bottom (not included). Designed for column mounting installation, to create stable monument monitoring positions which you can place total stations, GPS, prisms. on, for repeatable monitoring.

INCLUDES:

- Anodised aluminium body with 5/8 thread

FEATURES:

- Features an anodised aluminium body
- 3 threaded stud holes for 8x70mm Stainless Bolts (not included)
- 3 countersunk through-holes for alternative mounting option
- 5/8 x 11 threaded stud

SPECIFICATIONS:

- Top Thread: 5/8 x 11 male
- Bottom Threads: M8x1.25
- Plate Dimensions: 140mm x 19mm (excluding 5/8 thread)
- Weight: 785g
- Warranty: 12 months
