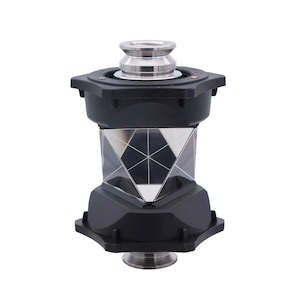

Trilex Topcon/Sokkia Style ATP1 360 Degree Prism Reflector Construction Series

AVAILABILITY: This item is usually dispatched same day
Developed to meet the needs of Auto-tracking Robotic Total Stations, the six precision-ground corner cubes are mounted in a rugged housing wth no horizontal offset between prisms and a -7mm prism constant. Designed with both a Female 5/8 x 11 mounting thread and a tribrach carrier mounting lug on top and bottom. Advanced 6-prism configuration provides unsurpassed measurement precision due to a minimum offset of each prism centre.
FEATURES:

- -7mm prism constant
- Six precision-ground corner cubes
- Protective caps

SPECIFICATIONS:

- Suits: Robotic total stations
- Prism Constant: -7 mm
- Prism Accuracy: 2mm 2ppm (1"~5" instrument)
- EAM spot: Φ200mm @100m
- Average measuring range: 1.3 ~ 1000m (average atmospheric condition)
- Height: 100mm
- Outside diameter: 68mm
- Inside Diameter: 38mm
- Base Connector: Female 5/8 x 11 mounting thread and a tribrach carrier mounting lug
- Top Connector: Female 5/8 x 11 mounting thread and a tribrach carrier mounting lug
- Warranty: 6 months
