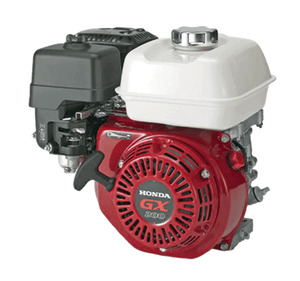

Honda GX200 Engine, BT Parts Summit Tools NZ

Honda’s GX series air cooled 4 stroke OHV horizontal shaft engines deliver solid reliable power and performance in a compact, lightweight design with an optimized layout of cylinder, air cleaner, muffler and fuel tank for easy installation into a wide range of equipment.

Consistent easy starting thanks to Honda’s automatic mechanical decompressor and hot-sparking transistorized ignition.

FEATURES -

GX200, 6.5HP max
Engine is easy starting OHV design
Pull start
Max net torque 12.4Nm @2500rpm
3/4" keyed shaft
Bore x Stroke – 68 x 54
Displacement 196cm³
Compression ratio 8.5:1
PTO Shaft Rotation - Counter-clockwise (from P.T.O. side)
Cast iron bore
3.1L fuel capacity
0.6ltr oil capacity
Fuel consumption; 1.7L/hour @3600rpm
Dimensions (LxWxH); 313 x 376 x 346mm
Weight 16kg
