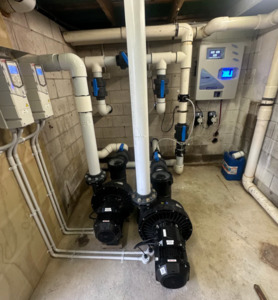

Mahurangi School Filtration Up Grade - Custom install, filtration, rollers, automation and heating

This is a range of a recent install we did at Mahurangi school.

Pool details:

- Inside pool
- 25m x 12m with a 1.5m x 12m balance tank
- 100mm pipe work suction and return
- 420k litres
- Glass media with option for other specialised media options
- Pool covers used
- Auto filler
- Chlorine pool, no options for salt as too much 316 stainless steel in the pool
- Variable speed drivers used to control flow and pressure
- 1100 ltr/ min for heat pump to start
- 1600 Praga filters with vac break valves

These prices are a range for your reference.

Total job price range $220k - $280k. This included a full cut out of the filter room and re plumb a more efficient filtration system. Easy to use and simple to track.

We datalog full chemical results to give water use per day, chemical use, chemical costings, Chlorine and HCL acid/ PH balance and alkalinity levels. All critical for high daily use.

Pump and VS drive Here

Filter and battery valves Here

Heating Here
