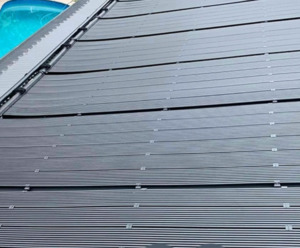

PSH Pool Solar Heating Panels
- Rigid solar comes in single moulded panel
- There are several sizes available
- Panels are the alternative to the more popular strip
- They are used for conditions such as steep roofs
- Australian Made - Closer manufacturing and relates to UV
- Every component has been redesigned for greater strength and durability
- PSH connections are triple sealed
- PSH collector tubes are larger and thicker
- Reduce the need to make roof penetrations with some clever design
For more information regarding a detailed quote email info@poolsolarheating.co.nz or call Justin on 021 0233 2600
- Tube Outside Diameter 8.0mm
- Tube Inside Diameter 6.0mm
- Tube Pitch 10mm
- Tube Wall Thickness 1.0mm
- Average Flooded Weight 6.61 kg/m2
- Recommended Flowrate Range 0.05 – 0.17 L/Sec/m2
- Maximum Pressure 500 KPA
- Maximum Temperature 700C
- Store:
- pool solar heating
- Price:
- $525
