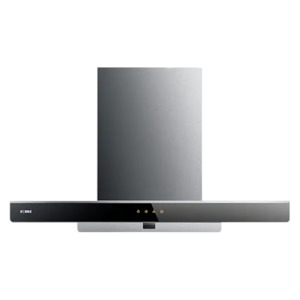

Fotile EMS9028S Chimney Hood
Setting a new standard with ring suction that breaks away from tradition
Features
- Wave Goodbye to Cooking Smoke: Goodbye to cooking smoke with a wave of hand. Wave to switch on or switch off the hood.
- Patented Wing-like Surround Suction Plate: The innovative Surround Suction Technology increases the smoke accumulation area of Fotile W to ensure that grease and smoke cannot escape
- Turbo System: Increase extraction power to 1,500m³/hr , leading grease and smoke out of the kitchen smoothly.
- Easy Cleaning: Simply unclasp the 4 buckles to remove suction plate before cleaning. The coated material makes cleaning a breeze
- Rounded Edge: Humanized design gives you a better product experience Specifications
- Certification: CB, SIRIM
- Type of Motor: AC Motor
- Material of hood: 90cm wide stainless steel with black panel surface design
- Unrestrained airflow (m3/hr): 1500
- IEC airflow (m3/hr): 1210
- Motor Power (W): 270
- Max Static Pressure (Pa): 430
- Noise Level (dB): ≤55
- No. of Speeds Fan Control: 3
- Illumination Power in LED (W): 2W x 1
- Type of hood: Chimney hood
- Oil Filtration Rate: 92%
- Odor Reduction Rate: 97%
- Automatic Turbo System: NO
- Smart Smoke and Sound Detection: NIL
- Intelligent Air Management: NIL
- Anion Sterilisation: NO
- Delay Off Function: YES
- Control Mode: Touch Wave
- Type of Filter: Corrugated filter
- Special Features: NIL
- Dimension W x D x H (mm): 900 x 515 x (520-940)
- Power Supply: 220V-240V/50-60hZ Manual
Goodbye to cooking smoke with a wave of hand. Wave to switch on or switch off the hood.
The innovative Surround Suction Technology increases the smoke accumulation area of Fotile W to ensure that grease and smoke cannot escape,
Increase extraction power to 1,500m³/hr , leading grease and smoke out of the kitchen smoothly.
Simply unclasp the 4 buckles to remove suction plate before cleaning. The coated material makes cleaning a breeze.
Humanized design gives you a better product experience
Key Features
Fotile EMS9028S Chimney Hood
- Goodbye to cooking smoke with a wave of hand. Wave to switch on or switch off the hood.
- The innovative Surround Suction Technology increases the smoke accumulation area of Fotile W to ensure that grease and smoke cannot escape.
- Simply unclasp the 4 buckles to remove suction plate before cleaning. The coated material makes cleaning a breeze.
- Humanized design gives you a better product experience.
Technical Parameters
Certification: SAA Product Size(mm)(W×D×H): 895x513x（596-920） Power Supply: 220V-240V 50Hz Max Static Pressure(Pa): 410 Max Airflow(m³/h): 1170（IEC 61591） Noise Level(dB): 56 Illumination Power in LED: 2W 1 Motor: AC Oil Filter: Removable Control Type: touch Delay Shutoff: 2min Screen Lock: N Intelligent Air Management: N Oil Filtration Rate: 92% Smell Reduction Rate: 97% Motor power(W): 270 No. of Speeds Fan Control: 2 Boost Automatic Turbo System: N Package Size (WxHxD) (mm): 1005 625 605
Manual Book Technical Parameters Product Manual
Installation Diagram
