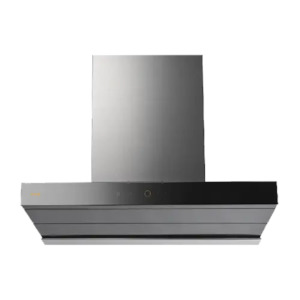

Fotile 90cm T-shape Side Range hood ZMG9039
ZMG9039, combined with different appearance designs of range hoods, performs more than excellently on fumes cleaning Accurate dual-cavity fume control Air inlet at both sides, with concentrated suction, fits the rising path of fumes. The 900mm broaden air inlet locks the fume sources of burners in both sides, achieving the accurate fume control.
According to the principle of “Golden fume control zone", the air inlet is set at a height of 500mm from the cooktop panel, intercepting the fumes in advance to block the disfffussion. No chance for fumes to eacape, show you an excellent gathering effect! Speed-up Straight Extraction System, direct suction and exhaustion 4 crucial points of the hood(fume source, air inlet, volute and air outlet) form a straight line for direction suction and fume exhaustion.
The Nautilus Air Passageway design, with the superpower of the impeller, is set in the air inlet and turbo port to enhance the fume extraction and accelerate the fume exhaustion. Strong core creates a perfect balance of power and quietness BLDC variable frequency motor means a powerful guarantee of strong suction and exhaustion.
The original manufacturer BLDC inverter motor, combining strong power with considerate care, ensures the fumes no escape with the consideration of “less disturbing" effect. All-matched hood, no limitation for ideal kitchen The lighter 325mm fan rack is perfectly embeddedin into the cabinet body of 370mm depth. There is no limitation for the hood to match with any cabinet.
Adjustable suspension design can realize the micro-seam installation between hood and cabinet, with perfect sealing effect and visual coordination. Noise reduction technology, low to 48 dB Noise is reducted by multi-cavity frequency division technology, basing on the Hermhoz Resonance principle. Nautilus suction air channel makes the distribution of fumes smoothly. Quietly enjoy your cooking time, and stay away from the greasy fumes. Technical Parameters Certification: SAA Product Size(mm)(W×D×H): 897x750x375 Power Supply: 220-240V 50Hz Max Static Pressure(Pa): 1090 Max Airflow(m³/h): 1390 Noise Level(dB): 41 Illumination Power in LED: 3W Motor: BLDC Oil Filter: Removable Control Type: Touch Motion Delay Shutoff: N Screen Lock: N Intelligent Air Management: N Oil Filtration Rate: 92% Smell Reduction Rate: 97% Packing-Box Size(mm)(W×D×H): 1010 825 490 Motor power(W): 258 No. of Speeds Fan Control: 2 T Automatic Turbo System: Y
