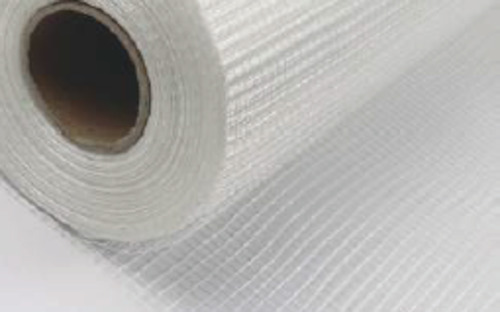

Mesh Fibre Roll 1mtr wide - per Linear Meter
General Description
STH1.4x4 is a high-performance glass fibre mesh fabric designed for use in external thermal insulation systems, cement-based screeds, and waterproofing applications. With its synthetic alkali-resistant coating, it offers strong resistance to degradation from adhesives and other building materials. Key Properties
High mechanical strength
Excellent dimensional stability
Alkali-resistant treatment without emollient
Obstructs yarn drifting
Compatible with all major façade systems Technical Characteristics Characteristic Unit STH1.4x4 – A101 Mesh Opening (Warp / Weft) mm (informative) 4 / 4 Standard Width cm (individual) 100 Roll Length m (individual) 50 Treated Fabric Thickness mm (informative) 0.49 Loom State Fabric Weight g/m² (informative) 129 Treated Fabric Weight g/m² (individual, min) 160 Treatment Type — Alkali-resistant, no emollient
Tensile Strength & Elongation
Tested according to DIN EN ISO 13934-1. Condition Tensile Strength (N/50 mm) Elongation (%) Standard (Nominal / Individual) 2100 / 1890 (warp & weft) 4.1 / 4.1 Fast Test (6 hours) 1600 / 1200 3.7 / 3.7 Fast Test (24 hours) 1000 / 1000 50% / 50% 3-Ions Solution (ETAG 004) 1000 / 1000 50% / 50%
Standards & Additional Information
Works Standard: 0326 Glass Fibre Mesh Fabrics
Inspection: Quality inspection and sample taking according to internal works standard 0326
Storage: Store in dry conditions between -10°C and 50°C
Custom Dimensions: Other widths and lengths available on request
