TECHNO MESH FIBRE - per Linear Meter
General Description

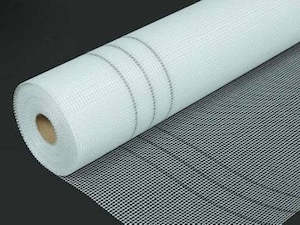

R131 A101 is a European-standard, alkali-resistant glass fibre mesh fabric designed for use in external thermal insulation systems, cementitious screeds, and waterproofing applications. Its synthetic coating provides excellent protection against degradation from adhesives and construction materials, ensuring long-term durability in demanding environments. Key Properties
High mechanical strength
Excellent dimensional stability
Alkali-resistant coating (no emollients)
Obstructs yarn drifting
Compatible with all major façade and render systems Technical Characteristics Characteristic Unit R131 A101 Mesh Opening (Warp / Weft) mm (informative) 3.5 / 3.8 Standard Width cm (individual) 100 Roll Length m (individual) 50 Treated Fabric Thickness mm (informative) 0.52 Loom State Fabric Weight g/m² (informative) 131 Treated Fabric Weight g/m² (individual, min) 160 Treatment Type — Alkali-resistant, no emollient
Tensile Strength & Elongation
Tested according to DIN EN ISO 13934-1. Condition Tensile Strength (N/50 mm) Elongation (%) Standard (Nominal / Individual) 2200 / 1900 (warp & weft) 3.8 / 3.8 Fast Test (6 hours) 1700 / 1250 3.5 / 3.5 Fast Test (24 hours) 1000 / 1000 50% / 50% 3-Ions Solution (ETAG 004) 1000 / 1000 50% / 50%
Standards & Additional Information
Standard Compliance: European Standard – R131
Works Standard: 0326 Glass Fibre Mesh Fabrics
Quality Inspection: Sampling and acceptance according to internal works standard 0326
Storage Conditions: Store rolls in dry areas between -10°C and 50°C
Custom Sizes: Other widths and roll lengths available on request
