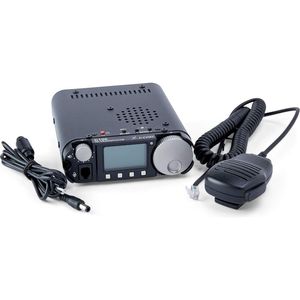

XIEGU G106 5 Watt Portable QRP Transceiver 80-10 Metres
The Xiegu G106 is a a great entry-level portable SDR transceiver, 5W portable QRP model with SDR circuit structure which uses 16bit-CODEC sampling and can deliver superior performance. The transceiver has SSB/CW/AM three modes and extra WFM (88~108MHz) receiving function, allowing you to listen to local FM broadcasts while communicating. Equipped with a CW digital filter with three bandwidths, it can help you connect to more and farther radio stations. With the external DE-19 digital adapter (optional), it can be easily connected to the computer and complete FT8 communication.
RSM Licenced to Supply Unrestricted Radios # 259612 - Callsign ZL3TOO
THIS UNIT WILL ONLY BE SOLD TO QUALIFIED AMATEUR RADIO OPERATORS AND MUST ONLY TRANSMIT ON AMATEUR FREQUENCIES. THE PURCHASER MUST PROVIDE PROOF OF THEIR AMATEUR RADIO QUALIFICATION. IF YOU DON'T HAVE AN AMATEUR RADIO (HAM) LICENCE PLEASE DON'T PURCHASE OTHERWISE WE WILL REFUND YOUR PURCHASE.
More information on gaining your Amateur Radio Licence.
Features:
- High-performance SDR core circuit
- Compact and robust structure
- Transmission and receiving of all amateur frequency bands within 3.8~29.7MHz
- WFM broadcast receiving
- Shortwave full-range continuous receiving
- Amateur data communication available
- Computer online control available
Technical Specifications:
- Receiving Frequency: 0.55~30MHz, 88~108MHz (WFM)
- Transmitting Frequency: 3.5~3.9MHz, 10.1~10.15MHz, 18.068~18.168MHz, 24.89~24.99MHz, 7.0~7.2MHz, 14.0~14.35MHz, 21.0~21.45MHz, 28.0~29.7MHz
- Operating Mode: SSB/CW/AM, WFM (receive only)
- Receiving Sensitivity: CW: 0.25uV @10dB S/N, SSB: 0.5uV @10dB S/N, AM: 10uV @10dB S/N
- Frequency Stability: ±1.5ppm within 30min after power on, @25°C: 1ppm/hour
- Transmitting Power: ≥5W @13.8V DC
- Transmitting Spurious Suppression: ≥50dB
- Audio Output Power: 0.3W
- Operating Voltage: 9~15V DC
- Standby Current: 0.37A @Max
- Transmitting Current: 2.8A @Max
- Dimensions: 120mm 40mm 135mm
- Weight: About 720g (only host)
Package Includes:
1x
