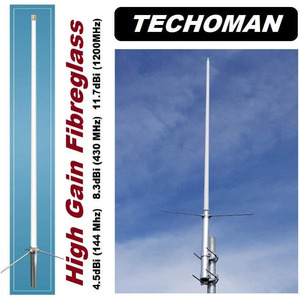

TECHOMAN VHF / UHF Base Station Fibreglass Antenna / Aerial - 144 MHz, 430 MHz and 1200MHz Bands

Perfect omnidirectional base station antenna for the avid ham radio operator. Excellent gain and built solid.Perfect gain for your home base station: 4.5dB (144MHz), 8.3dB (430MHz), 11.7dB (1200MHz)
Triple Band 144 / 430 / 1200 MHz ( VHF /UHF ) 100 watt Fibreglass Base Station Antenna with Mounting Hardware.
Comes with all the mounting gear for the ideal base station antenna to fit up to a 2" water pipe.
Kit includes:
Triple Band Antenna: 144 / 430 / 1200MHz
Ground plane radials
U bolts for up to 2" size pipe
Specifications:
Frequency range:144/430/1200MHz (2m/70cm/23cm)
Gain: 4.5dB(144MHz), 8.3dB(430MHz), 11.7dB(1200MHz)
Connector: N-Female
Length: 1.76m / Radial length:approx.19cm
Max.power rating: 100W FM(Total)
Impedance: 50ohms
VSWR: Less than 1.2:1
Rated wind velocity: 60m/sec.
Mast diameter accepted: 30mm to 62mm
Type: 6/8 wave C-Load (144MHz), 3x 5/8wave C- Load (430MHz), 7x 5/8 wave C- Load (1200MHz)
Package:
1 x TM-X5000FG Base Station Radio Antenna as pictured:
