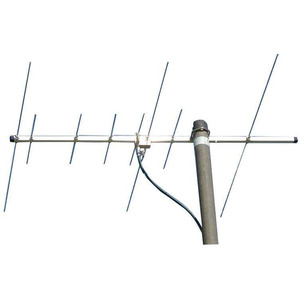

TECHOMAN VHF / UHF Base Ham Yagi Directional Antenna / Aerial - 144 MHz 430 MHz Bands
NEW FOR 2021
Perfect dual-band yagi base station antenna for the avid ham ( amateur radio ) operator. Excellent gain and built from quality stainless steel.
Fittings come to set for horizontal mounting. For vertical polarization a 50cm piece of pipe and additional mounting hardware is required which are not included and would need to be sourced locally - Mitre 10, Bunnings, Alternatively you could drill another set of mounting holes in the square section boom.
144 / 430 MHz ( VHF /UHF ) 50 watt (max) Yagi Base Station Antenna with Mounting Hardware.
Comes with all the mounting gear for the ideal base 144 / 430MHz antenna to fit up to a 2" water pipe.
Antenna requires assembly by following the enclosed instructions. A SWR meter will be required to do final driven element tuning.
Kit includes:
Dual Band Yagi Antenna: 144 / 430MHz ( 2 metre / 70cm Bands)
U bolts for up to 2" size pipe
Specifications:
Frequency range:145/435 (2m/70cm)
Gain: 9.5dBi (145MHz), 8.3dBi (435MHz)
Elements: 145 MHz - 3 Elements and 435 MHz - 5 Elements
Front to Back Ratio: Greater than 12dB
Connector: N-Female
Boom Length: 1.13m
Weight: 0.87kg
Max.power rating: 50W FM(Total)
Impedance: 50ohms
Mast diameter accepted: 30mm to 55mm
Package:
1 x TM-Y145/435S Base Station Radio Antenna as pictured:
0
0
Perfect dual-band yagi base station antenna for the avid ham ( amateur radio ) operator. Excellent gain and built from quality stainless steel.
Fittings come to set for horizontal mounting. For vertical polarization a 50cm piece of pipe and additional mounting hardware is required which are not included and would need to be sourced locally - Mitre 10, Bunnings, Alternatively you could drill another set of mounting holes in the square section boom.
144 / 430 MHz ( VHF /UHF ) 50 watt (max) Yagi Base Station Antenna with Mounting Hardware.
Comes with all the mounting gear for the ideal base 144 / 430MHz antenna to fit up to a 2" water pipe.
Antenna requires assembly by following the enclosed instructions. A SWR meter will be required to do final driven element tuning.
Kit includes:
Dual Band Yagi Antenna: 144 / 430MHz ( 2 metre / 70cm Bands)
U bolts for up to 2" size pipe
Specifications:
Frequency range:145/435 (2m/70cm)
Gain: 9.5dBi (145MHz), 8.3dBi (435MHz)
Elements: 145 MHz - 3 Elements and 435 MHz - 5 Elements
Front to Back Ratio: Greater than 12dB
Connector: N-Female
Boom Length: 1.13m
Weight: 0.87kg
Max.power rating: 50W FM(Total)
Impedance: 50ohms
Mast diameter accepted: 30mm to 55mm
Package:
1 x TM-Y145/435S Base Station Radio Antenna as pictured:
