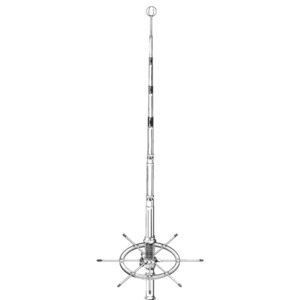

SIRIO Blizzard 2700 5/8 Wave 26 - 28 MHz CB Ground Plane Antenna / Aerial

This quality built Blizzard 2700 has a frequency range is 26 - 28 MHz and has a CAGE on top section, FT2 Fixing Bracket and includes the Nylon Ring.

Features:

- CB Base 10m band station antenna, Omnidirectional
- Factory tuned at mid-band
- High power handling capability
- Low radiation angle for excellent DX
- Equipped whit excellent multi element ground plane
- Made of aluminium alloy 6063 T-832
- Protection from static discharges DC-Ground
- Radials reinforcement, anti-noise NYLON RING

Electrical Data:

- Type: 5/8λ ground plane
- Frequency range: 26.4..28.4 MHz tuneable
- Impedance: 50Ω unbalanced
- Radiation (H-plane): 360° omnidirectional
- Polarization: linear vertical
- Gain: 1.5 dBd, 3.65 dBi
- Bandwidth @ SWR ≤ 2: ≥ 2000 KHz (180 channel)
- SWR @ res. freq.: ≤ 1.1
- Maximum power:

- 1000 Watts (CW) continuous
- 3000 Watts (CW) short time
- Feed system / position: Transformer DC-ground / base
- Connector: UHF-female (SO-239)

Mechanical Data:

- Materials: Aluminium, Steel, Copper, Nylon
- Wind load / resistance: 264 N at 150 Km/h / 130 Km/h
- Wind surface: 0.23 m²
- Height (approx.): 6700 mm (21.98 ft )
- Weight (approx.): 6000 gram (13.23 lb)
- Radial length (approx.): 1400 mm
- Mounting mast: Ø 35-39 mm

Package Includes:

1x Antenna
1x Nylon Ring
1x User Manual in English
