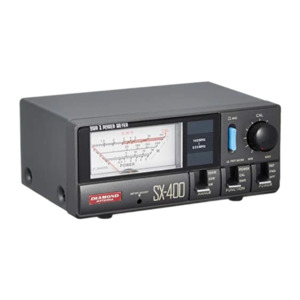

DIAMOND SX-400 (140-525MHz 200 Watt Maximum) VSWR Power Meter

Features, Functions and Specifications:

- Frequency range: 140 to 525 MHz
- Power display range: 5W/20W/200W
- Accuracy at full scale (Add -10% of full scale at 220 to 420MHz, add 10% of full scale at 450 to 525MHz):

- 5W Range ±10%(F.S),
- 20W Range ±5%(F.S),
- 200W Range ±5%(F.S),
- Minimum power at SWR measurement: 4W
- Insertion loss:

- Less than 0.1dB (140 to 250 MHz)
- Less than 0.2dB( 400 to 470 MHz)
- less than 0.3dB (525 MHz)
- Measurement functions:

- Forward RF power
- Reflected RF power
- SWR
- PEP monitor
- Connectors: UHF (SO239) Female
- Dimensions: 155(W) x 63(H) x 103(D) mm
- Weight: 742 grams

Package Includes:
1x SWR/PWR meter
1x Power cable
1x User manual
