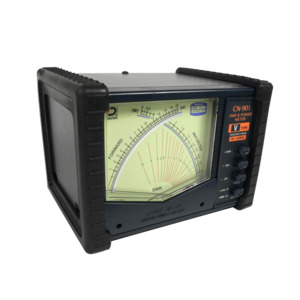

DAIWA CN-901VM SWR and Power Meter 140 - 525 MHz

SWR and Power indicators are installed in one meter unit. One scale will be indicated at the crossing point of the 2 needles. This unique feature makes it possible to read all of Forward Power, Reflected Power and SWR at the same time.

Specifications:

- Cross Needle SWR and Power Meter
- Frequency: 140~525 MHz
- Power Range forward: 20W/200W
- Tolerance: ±10% at full scale
- SWR measurement: 1:1 ~1:∞
- SWR Detection Sensitivity: 5 Watts
- Input/Output Impedance: 50 Ohm
- Input/Output Connectors: UHF-Female (SO-239)
- DC Power Supply: 13.8 VDC (70 mA)
- Dimensions: 157(W) x 117(H) x 117(D) mm
- Weight: 1 Kg

>

Package includes:
1x DAIWA CN-901VM SWR / POWER METER
