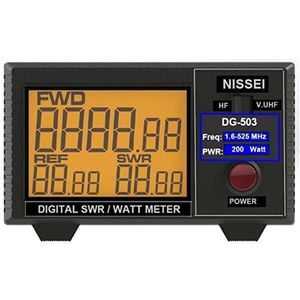

NISSEI DG-503 SWR / RF Test Meter HF ~ VHF ~ UHF 1.6~60MHz and 125~525MHz

The Nissei DG-503 works in the 1.6 to 60 MHz and 125 to 525 MHz bands, measuring from 1 to 200 Watts with measurements displayed simultaneously on the large 3.5-inch backlit display - direct power, reflected power and VSWR of analog signals. The DG-503 is not intended for use with pulsed digital, DMR or SSB transmissions.
Features separate inputs and outputs with switch selectable SO-239 connectors for the 1.6 to 60MHz or 125 to 525MHz.

These SWR/Power Meters are intended for their main use as a base station meter for Amateur Radio Operators. Power calibration is accurate to /- 5% at the calibrated frequencies of 28 / 145 / 435 MHz
Features:

- Indicates the condition of a 50 ohm antenna and coaxial feed
- Tests for SWR, Forward and Reverse Power

Specifications:

- Insertion attenuation less than 0.1dB
- Connectors: SO239
- Power Calibration Frequencies: 28 / 145 / 435 MHz
- Accuracy at Calibration Frequencies: /- 5%
- Minimum Power for SWR Measurement: 1 watt
- Dimensions 140 x 84 x 122 mm
- Weight: 750 grams

Package includes:
1x Nissei DG-503 SWR / POWER METER
1x English Manual
1x 12 VDC power cable
