TECHOMAN HT201 20:1 Oscilloscope Signal Attenuator
10MHz
Ideal for connecting to your oscilloscope to measure higher voltage fuel injector and primary ignition wave forms. Great for protecting your oscilloscope from over-voltage inputs when measuring amplifiers and voltages above the input range of your oscilloscope.
As an example: if measuring a 20V signal, the attenuator will output a 1V signal to your oscilloscope.
Specifications:
Attenuation: 20:1
Bandwidth: 10MHz
Package:

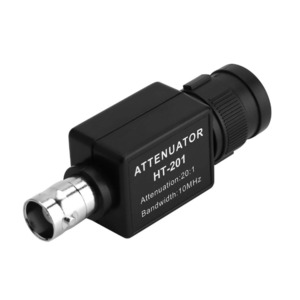

1x HT201 as pictured
