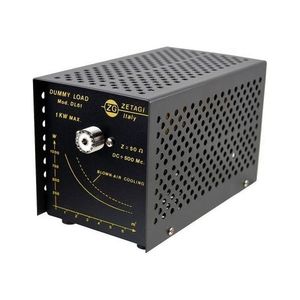

ZETAGI DL-61 Dummy Load 200 Watt Continuous / 1 Kilowatt Intermittent

A radio frequency dummy loads are used to simulate a 50 ohm radio antenna load for testing purposes. In radio a dummy antenna is connected to the output of a radio transmitter and electrically simulates an antenna to allow the transmitter to be adjusted and tested without radiating radio waves.
These are ideal when coupled with a RF power meter (we have these available too) for testing or when testing to reduce radio frequency radiation or interference.
Specifications:

- Impedance: 52 Ω
- SWR: @ 25ºC:

- - DC-200MHz: 1.15:1
- - 200-500MHz: 1.3:1
- Max. dissipated power:

- - Intermittent( ): 1 KW (without forced ventilation, duty cycles ON 1' OFF 5')
- - Continuous: 200 W
- Temperature coefficient: 0.15%/°C
- Size: 100 x 180 x 110 mm
- Weight: 0,89 Kg Package:
1 x 50 ohm 200 Watt Continuous / 1 Kilowatt Intermittent Dummy Load as pictured
