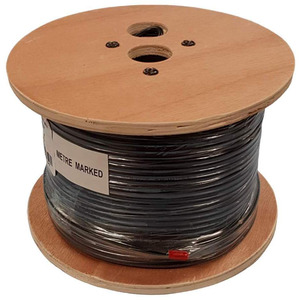

TYCAB RF Antenna / Aerial Coaxial Cable 50 Ohm Coax RG58 RG-58 Roll
High Quality Tycab Radio Antenna RG58 / RG-58 Coaxial Cable.
Specifications:
100 metre roll
50-ohm coaxial cable.RG58C/U type
Tycab Brand
Stranded centre conductor for added cable flexibility
Typical Impedance : 50 /-2 ohms.
Nominal Diameter : 4.95 mm /- 0.1mm.
Flexible annealed tinned copper centre conductor with 19 strands of 0.18 mm Tinned Annealed Copper drawn from Class 110A copper to AS1574. Overall Diameter : 0.9 /- 0.05 mm.
Solid polyethene insulation - Solid Low-Density Polyethylene. Nominal Diameter : 2.95 mm /- 0.1mm.
Screen is Tinned Annealed Copper Braid to a min. coverage of 95%. (16x7x0.12mm).
Non–contaminating PVC sheath.
Velocity of propagation ratio: 66 %.
Package:
100 Metres Antenna Coaxial Cable on original roll
