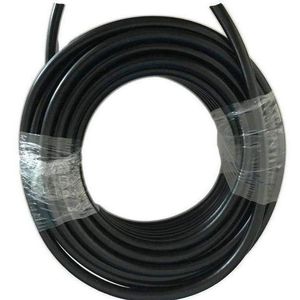

TYCAB 30 Metre RF Antenna / Aerial Coaxial Cable 50 Ohm Coax Cut Length RG58 RG-58
TYCAB 30 Metre High Quality Precut Antenna RG58 / RG-58 Coaxial Cable.
Specifications:
50-ohm coaxial cable.
RG58C/U type
Stranded centre conductor for added cable flexibility
Typical Impedance : 50 /-2 ohms.
Nominal Diameter : 4.95 mm /- 0.1mm.
Flexible annealed tinned copper centre conductor with 19 strands of 0.18 mm Tinned Annealed Copper drawn from Class 110A copper to AS1574. Overall Diameter : 0.9 /- 0.05 mm.
Solid polyethene insulation - Solid Low-Density Polyethylene. Nominal Diameter : 2.95 mm /- 0.1mm.
Screen is Tinned Annealed Copper Braid to a min. coverage of 95%. (16x7x0.12mm).
Non–contaminating PVC sheath.
Velocity of propagation ratio: 66 %.
Package:
30 Metre Antenna Coaxial Precut Cable
