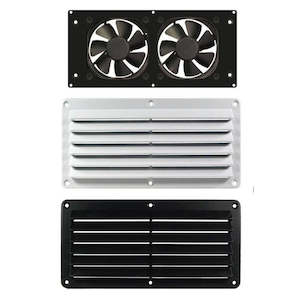

Cool Components Hi Flo Basic

- Quick and easy installation
- Quiet and efficient operation
- Aggressively circulates air in a cabinet or enclosure
- Uses variable voltage power supply to adjust fan speed based on the application
- Compatible with Cool Components Temperature Controllers (TC- BSC, TC-ALT & TC-AC)

Home Theater Recommended Practice: Equipment Cooling and Ventilation

Recommendations:

Ambient Room Conditions

• Temperature: 20◦ - 23◦C

Equipment Conditions:

• Operating Temperature:≤ 29◦C

• Fresh Air Inlet to Rack/Cabinet: 24◦C

Note: 99.6% of all power (electricity) going into a rack is converted to heat

Note: for approximately every 5 ◦ C above 29 ◦ C, reliability of equipment drops 50%

General Specifications

Dimensions - Plastic Grill: 26cm L x 12.7 H

Dimensions - Fan Unit: 24.8cm L x 11.4 H x 2.9 D

Installation Cutout: 20.5cm L x 9.5 H

Cooling System: 2 - 92mm Brushless Magnetic Levitation Fans (Est. 50,000 hrs.)

Air Flow: Up to 130 CFM

Noise: Silent to ~28 dba

Power Specifications

Does not include power supply

Connection: 2-Pin FastWire Power System (Ensure proper polarity - Tip to )

Voltage: 5 to 9V DC for Normal Operation or 9-12V for More Aggressive Cooling

Current: 400 milliamps at 12V DC
