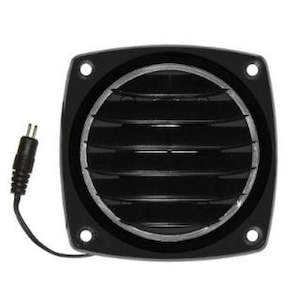

Cool Components Slim Vent (Black)

•Quiet and efficient operation

• Effectively circulates air in a cabinet or enclosure

• Sleek, compact size allows for placement in tight spaces

• Quick and easy installation

• Uses variable voltage power supply to adjust fan speed based on the application

• Compatible with the Temperature Controllers for automated control (TC-BSC, TC-ALT & TC-AC)

• Airflow direction is easily reversed

General Specifications

Dimensions: 9.2cm W x 9.2 H x 2.9 D

Construction: PVC w/ Gloss Finish (Available in Black & White)

Cooling System: 1 50mm x 10mm Brushless Magnetic Levitation Fan (Est. 50,000 hrs.)

Air Flow: 10 CFM (Max)

Noise: Silent to ~25 dba (Max)

Req’d Hole Size: 76mm

Power Specifications

Multiple units can be powered with a single power supply - not included

Connection: 2-Pin FastWire System (Ensure proper polarity - Tip to )

Voltage: 5 to 9V DC for Normal Operation or 9-12V for More Aggressive Cooling

Current: 40 milliamps at 12V DC
