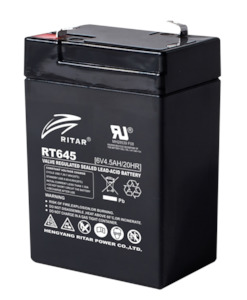

RT645 - Ritar 6V 4.5Ah Sealed Lead Acid Battery

General purpose battery with 6-8 years design life.

RT series is a general purpose battery with 6-8 years design life in float service. It meets with IEC and JIS standards.

With up-dated AGM valve regulated technology and high purity raw materials, the RT series battery has reliable standby service life.

It is suitable for UPS/EPS, medical equipment, emergency light and security systems applications.
General purpose. 6-8 years design life. Features

- Voltage class: 6V/12V
- Capacity range: 1.3Ah~28Ah
- Long design life
- Low self-discharge rate
- Good high rate discharge performance
- Wide operation temperature range
- Application: small UPS, emergency light, security systems, toys, medical,.
- Good high rate discharge performance
- Two or more types of terminals for convenient selection
- Compact design
- Double sealed terminals

Models

Battery model Rated voltage （V） Rated capacity C20（Ah） Battery size Terminal options Terminal location Length/mm Width/mm Height/mm Total height/mm RT613 6 1.3 97 24 52 58 F1 C RT628 6 2.8 66.5 34 97 103 F1 A RT632 6 3.2 134 34 60 66 F1 C RT640S 6 4 194 25 62 62 T1 N RT640 6 4 70 47 99 105 F1 A RT645 6 4.5 70 47 99 105 F1 A RT650 6 5 70 47 99 105 F1/F2 A RT670 6 7 151 34 94 100 F1/F2 C RT680 6 8 151 34 94 100 F1/F2 C RT6100 6 10 150 50 93 99 F1/F2 C RT6120 6 12 150 50 93 99 F1/F2 C RT1213 12 1.3 98 43.5 53 59 F1 E RT1223 12 2.3 177 35 62 68 F1 C RT1232 12 3.2 134 67 60 66 F1 E RT1240 12 4 90 70 101 107 F1/F2 C RT1245 12 4.5 90 70 101 107 F1/F2 C RT1245S 12 4.5 195 47 71 76 F1/F2 C RT1245U 12 4.5 151 65 94 100 F1/F2 C RT1250 12 5 90 70 101 107 F1/F2 C RT1250B 12 5 151 50 95 101 F1/F2 C RT1270 12 7 151 65 94 100 F1/F2 F RT1270A 12 7 151 65 94 100 F1/F2 F RT1270L 12 7 151 65 94 100 F1/F2 F RT1270(VDS) 12 7 151 65 94 100 F1/F2 F RT1280 12 8 151 65 94 100 F1/F2 F RT1280L 12 8 151 65 94 100 F1/F2 F RT1290EP 12 9 151 65 94 100 F1/F2 F RT1290 12 9 151 65 94 100 F1/F2 F RT12100 12 10 151 98 95 101 F1/F2 F RT12120 12 12 151 98 95 101 F1/F2 F RT12120A 12 12 151 98 95 101 F1/F2 F RT12180 12 18 181 77 167 167 F3(M5) / F13-BP(M5) D RT12200 12 20 181 77 167 167 F3(M5) / F13-BP(M5) D RT12220 12 22 181 77 167 167 F3(M5) / F13-BP(M5) D RT12240 12 24 166 176 125 125 F3(M5) / F13-BP(M5) D RT12260 12 26 166 176 125 125 F3(M5) / F13-BP(M5) D RT12240S 12 24 165 125 174 174 T28(M5) / F11(M6) D RT12280 12 28 166 176 125 125 F3(M5) / F13-BP(M5)/T24(M5) D RT12260S 12 26 165 125 174 174 F7(M8) / F11(M6) D RT12280S 12 28 165 125 174 174 F7(M8) / F11(M6) D
