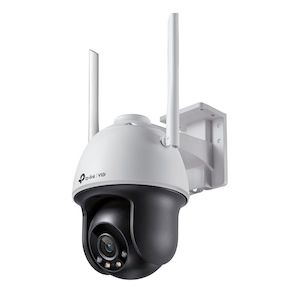

TL-VIGIC540-W(4MM) - TP-Link VIGI C540-W (4mm) 4MP Outdoor Full-Colour Wi-Fi Pan Tilt Network Camera
VIGI 4MP Outdoor Full-Colour Wi-Fi Pan Tilt Network Camera
- 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs.
- Powerful Pan Tilt: Customised patrol routes and auto-tracking provide more intelligent options to monitor key areas and improve security within your property.
- Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
- Waterproof: Reliable IP66 for stable outdoor performance.
- Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
- H.265 : Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- VIGI App: Manage your security from the palm of your hand with the VIGI app. CAMERA Image Sensor 1/3" Progressive Scan CMOS Lens Fixed focal lens (4 mm) Aperture 4 mm: F1.6 Lens Mount M12 Viewing Angle (4mm) Horizontal FOV: 79°Vertical FOV: 43°Diagonal FOV: 93° Digital Yes Day/Night Mechanism IR Cut Filter IR Working Distance 30m Illumination Distance 30 m Minimum Illumination 0 lux with IR/white Light Pan/Tilt Range Pan: 0° to 350°, Tilt: 0° to 120° Weatherproof Rating IP66 Digital Noise Reduction 3D DNR WDR DWDR NETWORK Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS Wireless Rate 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n) Frequency 2.4 GHz Wireless Security WPA/WPA2-PSK API ONVIF Simultaneous Live View 3 Main Streams & 3 Sub-Streams GENERAL Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Power Adapter
Mounting Accessories Operating Temperature -30–60 °C Certifications CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC Dimensions( H X W X D ) 120 × 172 × 198 mm Material Plastic General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug Power Consumption 12V DC: Max 15.5W VIDEO/IMAGE Video Compression Main stream: H.265 /H.265/H.264 /H.264
Sub-Stream: H.265/H.264 Frame Rate & Resolutions Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Video Streaming Main Stream
Sub-Stream Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps SMART FEATURE-SET Smart Event Area Intrusion Detection, Line-Crossing Detection, Human Detection Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login) Linkage Method Trigger Notification: ONVIF, HTTPS Region of Interest 1 Region INTERFACES Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port Audio Input Built-in Microphone Audio Output Built-in Speaker Button Reset Button On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB For additional version information, please go to the support page.
†Picture for reference only.
Micro SD card is not included in the package.
