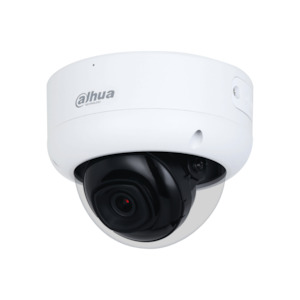

DH-IPC-HDBW3666EP-AS-AUS - Dahua - 6MP IR Fixed-focal Dome WizSense Network Camera
The DH-IPC-HDBW3666EP-AS-AUS 6MP IR Fixed-focal Dome WizSense Network Camera from Dahua is a powerful surveillance solution. It features a 6-MP 1/2.7 image sensor and a fixed-focal lens for clear, detailed images. It also has an IR cut filter and an IR LED for night vision up to 30m. The camera is equipped with a microSD card slot for local storage and supports H.265/H.264 video compression for efficient storage and transmission.
The camera is also equipped with a range of intelligent features, including motion detection, line crossing detection, intrusion detection, and face detection. It also supports two-way audio and has an IP67 rating for protection against dust and water. The camera is easy to install and configure, making it an ideal choice for any surveillance system. DH-IPC-HDBW3666EP-AS-AUS
6MP IR Fixed-focal Dome WizSense Network Camera >6-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
>Outputs max. 6 MP (3072 × 2048) @25/30 fps
>H.265 codec allows high compression ratio and ultra-low bit rate.
>Built-in IR LED, max. IR distance: 30 m.
>ROI, SMART H.264 /H.265 ,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67, IK10 protection.
>SMD 4.0, AI SSA. Specs
Camera
Image Sensor
1/2.7" CMOS
Max. Resolution
3072 (H) × 2048 (V)
ROM
128 MB
RAM
1 GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
>56 dB
Illumination Distance
30 m (98.43 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
3 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm;
Max. Aperture
F1.4
Field of View
2.8 mm: Horizontal: 111°; Vertical: 58°; Diagonal: 132°
3.6 mm: Horizontal: 92°; Vertical: 45°; Diagonal: 110°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 1.1 m (3.61 ft)
3.6 mm: 1.7 m (18.37 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
63.6 m
(208.66 ft)
25.4 m
(83.33 ft)
12.7 m
(41.67 ft)
6.4 m
(21.00 ft)
3.6 mm
85.4 m (280.18 ft)
34.2 m (112.20 ft)
17.1 m
(56.10 ft)
8.5 m
(27.89 ft)
Intelligence
IVS (Perimeter Protection)
Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI SSA
Yes
Quick Pick
With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec
Smart H.265
Smart H.264
AI Coding
AI H.265
AI H.264
Video Frame Rate
Main stream: 3072 × 2048 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/
704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity DOUBLEB
