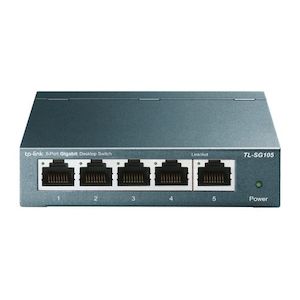

TL-SG105 - TP-Link TL-SG105 Steel housing 5-Port 10/100/1000Mbps Desktop Switch
5-Port 10/100/1000Mbps Desktop Switch
- 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Plug and play, no configuration needed
- Supports 802.1p/DSCP QoS and IGMP Snooping functions
- Durable metal casing, desktop/wall-mounting options, and a fanless design
- IEEE 802.3x flow control provides reliable data transfer
- Green Ethernet technology reduces power consumption
HARDWARE FEATURES Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p Interface 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports Fan Quantity Fanless External Power Supply External Power Adapter (Output: 5 V DC / 0.6A) LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) Max Power Consumption 2.3 W (220 V/ 50 Hz) Max Heat Dissipation 7.83 BTU/h PERFORMANCE Packet Forwarding Rate 7.4 Mpps MAC Address Table 2K Packet Buffer Memory 1 Mb Jumbo Frame 16 KB SOFTWARE FEATURES Advanced Features Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping Transfer Method Store and Forward OTHERS Certification CE, FCC, RoHS Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide Environment Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
