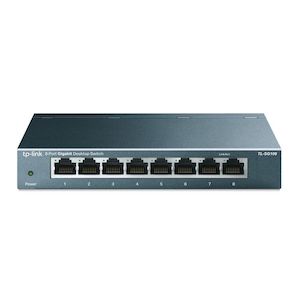

TL-SG108 - TP-Link TL-SG108 Steel Housing 8-Port 10/100/1000Mbps Desktop Switch
- 8× 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed HARDWARE FEATURES Standards and Protocols IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p
Interface 8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX Fan Quantity Fanless External Power Supply External Power Adapter (Output: 5VDC / 0.6A) LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm) Max Power Consumption 2.77 W(220V/50Hz) Max Heat Dissipation 9.45 BTU/h PERFORMANCE Packet Forwarding Rate 11.9 Mpps MAC Address Table 4K Packet Buffer Memory 1.5 Mb Jumbo Frame 16 KB SOFTWARE FEATURES Advanced Features Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping Transfer Method Store and Forward OTHERS Certification CE, FCC ,RoHS Package Contents 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing For additional version information, please go to the support page.
