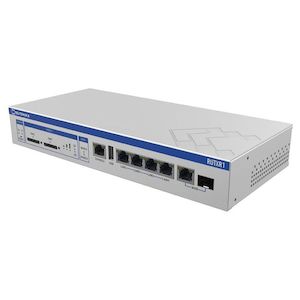

Teltonika RUTXR1 Rack Mountable Gigabit 4G/LTE Cat6 Dual SIM Cellular Router with SFP and Redundant Power Supply
Teltonika RUTXR1 is our first-ever rack-mounted LTE Cat6 dual SIM Cellular Gigabit router with redundant power supplies and WAN interfaces, which can be conveniently placed in a server cabinet. It is equipped with dual SIM, USB, and Wave-2 802.11ac Dual Band Wi-Fi. But what makes this product stand out from the rest of Teltonika Networks products are the SFP WAN and dedicated console ports. The unique feature set of this product allows using it as a primary product in a small or home office with LTE backup capabilities, powerful WiFi, and no need for an additional SFP to Ethernet converter.
This feature-rich device is powered by RutOS and is a perfect choice, where a speedy and ultra-reliable connection is required!
Features
- 5 x Gigabit Ethernet ports
- Dual SIM Cellular with auto failover, backup WAN and other switching scenarios
- Dual Redundant Power Inputs
- Rack Mountable
- SFP port for long-range Fiber-optic communication
- Compatible with Teltonika Remote Management System (RMS)
- Wave-2 802.11ac Dual Band WIFI
- 4G LTE CAT 6 Cellular speeds up to 300Mbps with Carrier Aggregation Specifications Details Product code RUTXR1 Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – up to 42 Mbps SIM switch 2 SIM cards, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto replay Band management Band lock, Used band status display APN Auto APN Bridge mode Direct connection (bridge) between mobile ISP and device on LAN Wireless mode 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation WiFi users up to 150 simultaneous connections Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover Fiber 1 x SFP port (cannot work simultaneously with Ethernet WAN port) LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover Console RS-232 (RJ45) console port for router configuration and debuging Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN Port and tag based VLAN separation WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) GRE GRE tunnel PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support Allow remote access Allow access through WAN Custom registers Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log CPU Quad-core ARM Cortex A7, 717 MHz RAM 256 MB, DDR3 FLASH storage 256 MB, SPI Flash Power Connector 2 x 4 pin industrial DC power sockets for main and redundancy power sources Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection Power consumption idle
