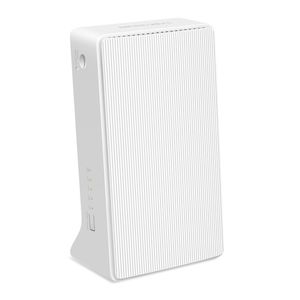

MER-MB230-4G - Mercusys MB230-4G, 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
- 4G network – Enjoy the 4G Cat 6 download speeds up to 300 Mbps.
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
- Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
- Simultaneous Connection– Enjoy and share internet access with up to 64 Wi-Fi devices.
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection. Faster and Smoother
with 4G Speed and
Dual Band WiFi
4G Cat6 AC1200 Wireless Dual Band Gigabit Router Plug Your Nano SIM Card and Play
Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple Wi-Fi devices.
Notes: Make sure your SIM card is unlocked. If not, you can
a. Set up the router via the MERCUSYS app and follow the app instructions to unlock your SIM card.
b. Log in to the router's web management page and go to Advanced >Network >PIN Management to verify.
Get Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility and the utilize fast and stable Wi-Fi, whether you're at home or working remote.
Extra Fast 4G Cat 6 Speed for Reliable Wi-Fi
MB230-4G supports the 4G Cat 6, which uses Carrier Aggregation technology, to achieve superfast LTE speeds up to 300 Mbps
download and 50 Mbps upload. It can also share a dual band Wi-Fi network for gaming, streaming, and more.
Share the WiFi with Friends
An remarkable number of wireless gadgets are compatible with this 4G router without any issues. Up to 64 simultaneous
connections for tablets, laptops, mobile phones, and other devices.
Full with Strong and Stable Signal
Internal high gain antennas strengthen the WiFi signal, extend the range of connection establishment, and boost the sensitivity of the router.
Available WAN Connection Backup
With a fully functional WAN/LAN port, MB230-4G can work as a router which is compatible with cable, fiber, and DSL modems, or
provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
Note: When the router is set to Wireless Router mode, it can be used as the WAN port to connect the DSL/cable Modem or Ethernet outlet. To change to
this mode, refer to Set Up the Router in Wireless Router Mode. (You can check the steps in the User Guide.)
Easy Setup and Management via MERCUSYS App
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
†Maximum wireless signal rates are the physical rates derivedfrom IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors,including building materials, obstacles, volume and density of traffic, and client location.
‡Maximum 4G download speeds depend on external factors such as the local 4G network coverage, data plan, real-time network capacity, client limitations, and environmental factors.
Wireless Wireless Standards
IEEE 802.11ac/a/b/g/n
Frequency
5 GHz, 2.4 GHz
Signal Rate
867 Mbps at 5 GHz
300 Mbps at 2.4 GHz
Reception Sensitivity
11g 6Mbps: -95dBm
11g 54Mbps: -77dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
11a 6Mbps: -92dBm
11a 54Mbps: -75dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65dBm
11ac VHT80 MCS9: -61dBm
Transmission Power
2.4 GHz< 20dBm (EIRP)
5 GHz< 23dBm (EIRP)
Wireless Security
WPA-PSK / WPA2-PSK / WPA3-SAE
Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics Software DHCP
Server Hardware Dimensions (W X D X H)
95×61.05×165.97 mm
Interfaces
1× Gigabit LAN/WAN Port
1× Gigabit LAN Port
1× Nano SIM Card Slot
Button
WPS/Reset Button
Network Type
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20
