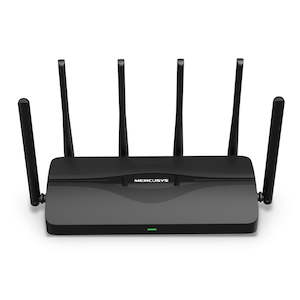

MER-MR47BE - Mercusys MR47BE, BE9300 Tri-Band Wi-Fi 7 Router
Blazing-Fast 9214 Mbps Tri-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.†
Newest Wi-Fi 7: Armed with the 320 MHz channels, 4K-QAM, MLO, the 6 GHz band, and other features that Wi-Fi 7offers, you network will arrive with jaw-dropping performance. ‡
Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.‡
4× 2.5G Ports: 1× 2.5 Gbps WAN port and 3× 2.5 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance.
Maximised Coverage: 6× omni directional antennas, proprietary Wi-Fi optimisation, and Beamforming technology deliver broader coverage, more capacity, stronger and more reliable connections, and less interference.
EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.
Easy Setup and Use: Network management has never been easier with the MERCUSYS app.
Wireless Wireless Standards
Compatible with 802.11be/ax/ac/a/b/g/n Wi-Fi standards Signal Rate
BE9300
• 6 GHz: 5760 Mbps (802.11be)
• 5 GHz: 2880 Mbps (802.11be)
• 2.4 GHz: 574 Mbps (802.11ax) Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE Wireless Functions
• Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs Software WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management
Access Control
Local Management
Remote Management DHCP
Server, DHCP Client List NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ Firewall Security
SPI Firewall, IP and MAC Address Binding Guest Network
2.4 GHz Guest Network
5 GHz Guest Network
6 GHz Guest Network VPN Sever
OpenVPN/PPTP/L2TP/ WireGuard VPN Server and Clients Hardware Dimensions (W X D X H)
10.1 × 4.7 × 1.7 in
(258 × 119 × 43.3 mm) Interfaces
1× 2.5 Gbps WAN Port 3× 2.5 Gbps LAN Ports Button
Reset/WPS Button Antenna Type
6× Fixed Omni-Directional Antennas Others Package Contents
• BE9300 Tri-Band Wi-Fi 7 Router MR47BE
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Up to 300 device connections is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other loT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers. This router may not support all the mandatory features as ratified in the IEEE 802.11be specification. Further software upgrades for feature availability may be required.
§2.5 Gbps internet speeds require compatible service plans and equipment.
△4× Lower Latency refers to the latency improvement of Wi-Fi 7 routers compared to Wi-Fi 6/6E routers, based on laboratory test data. The test conditions had the same 5 GHz or 6 GHz single-frequency wireless interference and tested the maximum latencies of Wi-Fi 7 clients (with MLO turned on) connecting to the 5 GHz and 6 GHz bands of a MERCUSYS Wi-Fi 7 router (with MLO turned on) simultaneously and to the 5 GHz or 6 GH
