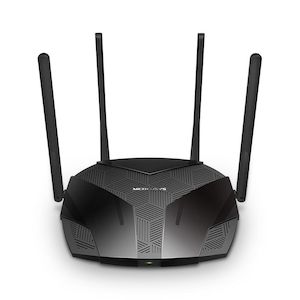

MER-MR80X - Mercusys AX3000 Dual-Band Wi-Fi 6 Router
- OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.
- MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- WiFi THAT GOES FARTHER – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
- GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
- SMART CONNECT – Intelligently chooses the best available band for each device Wireless Wireless Standards
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards Signal Rate
2402 Mbps (5 GHz) 574 Mbps (2.4 GHz) Reception Sensitivity
11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8:-75dBm
11ac VHT40 MCS9:-71dBm
11ac VHT80 MCS9:-67dBm
11ax VHT20 MCS11:-67dBm
11ax VHT40 MCS11:-64dBm
11ax VHT80 MCS11:-61dBm Transmission Power
2.4 GHz< 20dBm (EIRP)
5 GHz< 23dBm (band1、 band2)
5 GHz< 30dBm (band3) Wireless Security
WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal Wireless Functions
Enable/Disable Wireless Radio, WMM Software WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management
Access Control
Local Management
Remote Management DHCP
Server, DHCP Client List NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ Firewall Security
SPI Firewall, IP and MAC Address Binding Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network VPN Sever
OpenVPN, PPTP supported Hardware Dimensions (W X D X H)
8.2 × 6.8 × 1.6 in
(208.8 × 171.6 × 41.7 mm) Interfaces
1× Gigabit WAN Port 3× Gigabit LAN Ports Button
Reset/WPS Button Antenna Type
4× 5 dBi Fixed Omni-Directional Antennas Others Package Contents
• AX3000 Wi-Fi 6 Router MR80X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
