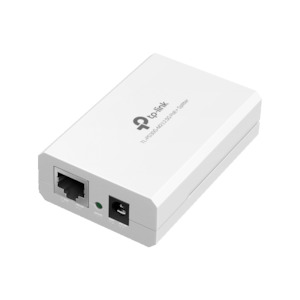

TP-Link TL-PD30G-M2, 2.5G PoE+ Splitter

- IEEE802.3af/at compliant
- Selectable power output
- Plug-and-Play, requires no configuration

 HARDWARE FEATURES Interface 1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER DATA IN Port
1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port
1 12V / 9V / 5V DC OUT Power Output Port Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5e, 6 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
2.5GBASE-T: UTP category 5e, 6 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) Power Supply 12VDC 2A, 9VDC 2A, 5VDC 2A Basic Function Compatible with IEEE 802.3af/at compliant PSEs
Delivers power up to 100 meters
Optional 12VDC, 9VDC or 5VDC power supply LED Indicator ON: Connected to PSE correctly
Off: No PSE is connected Dimensions ( W x D x H ) 3.2 2.1 0.9 in (80.8 54 24 mm) SOFTWARE FEATURES Basic Function Compatible with IEEE 802.3af/at compliant PSEs
Delivers power up to 100 meters
Optional 12VDC, 9VDC or 5VDC power supply OTHERS Certification FCC, CE, RoHS Package Contents TL-PD30G-M2
Power Cord
Installation Guide System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista„¢ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. Environment Operating Temperature: -5°C~45°C (23°F~113°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing For additional version information, please go to the support page.
