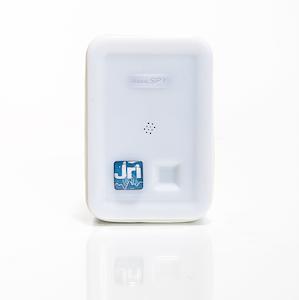

Nano SPY TH Recorder

The Nano SPY TH internal sensor measures, records temperature and relative humidity and transmits its data to a nearby Nano SPY LINK module via 2.4 GHz radio frequency communication. The data is automatically sent to the JRI secure Cloud for hosting, and will be managed on the JRI MySirius web application. If thresholds are exceeded, alerts are transmitted in real time via alarm SMS/Text and email. The Nano SPY will also flash red when in alarm as well at the Nano SPY Link module. Small and robust, it is designed to monitor temperature and relative humidity

NOTE: To operate the device requires connection to Nano SPY LINK and My Sirius subscription. Interface Status LED lights and On/Off touch sensitive button Measurement range -30°C to 70°C & 0 - 100% RH Accuracy ±0.4°C from -20°C to 40°C and ±0.5°C out of this range. Between 15°C and 25°C : ±3% RH from 20% to 80% ±5% RH from 0% to 20% and 80% to 100% Communication 2.4 GHz (802.15.4) Memory 10,000 data points Sensor SENSIRION SHT25 digital Operating conditions -30°C to 70°C Resolution 0.01 Measuring and transmission period Adjustable from 5 sec to 12 hrs Internal memory recording period Adjustable from 5 sec to 24 hrs Response time t90 ~2 mn at 90% of the variation Protection IP40 Case Polycarbonate – Food contact Power supply Lithium 3,6v battery - Replacement Battery life 2 to 4 years depending on use Dimensions and weight 63 x 42 x 25 mm / ~ 60 g Mounting Fixing eyelets and integrated magnets Supplied with Battery, 3 identification rings pack : blue, green and grey Compliance CE, ROHS, FCC, ETS 300-328, EN 12830 Standard calibration points 2°C/ 22°C/ 38°C and 20%/ 50%/ 80%RH
