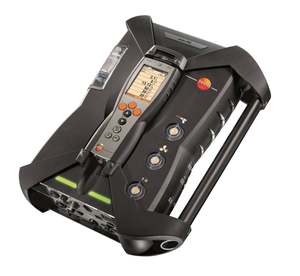

Exhaust Gas Analysis Box for O2, CO, NO, SO2 - Testo 350XL

This item is Price on Application. Pricing from $10,000 GST

Please call 09 579 1990 and ask to speak with one of our Testo Instrumentation team members to purchase.

Part No: 0632 3510

- Increased measurement range for unlimited measurements even when gas concentrations are higher
- Easy-to-change gas sensors and easy access to wearing parts
- Sealed housing with built-in impact protection for use in harsh conditions
- Automatic processing of measuring programmes over a longer period
- Excludes sampling probe - suitable probes are Modular Probe 500°C 180mm and Modular Probe 500°C 300mm

The Testo 350 is a rugged, easy-to-use exhaust gas analyzer designed to meet the highest demands when it comes to carrying out precise industrial emission measurements and providing proper data administration. The Analysis Box can be operated with up to 6 gas sensors, 5 of which are optional. This allows you to select freely from sensors for CO, NO, NO2, SO2, H2S, CxHy and CO2.

Delivery Scope
Testo 350 Analysis Box, O2, incl. differential pressure sensor, type K NiCr-Ni and type S temperature sensor port, Pt10Rh-Pt, Testo data bus port, rechargeable battery, built-in combustion air sensor (NTC), trigger port, data memory, USB interface, carrying strap set for the Testo 350 analyzer box and control unit.

Details

Ideal for professional exhaust gas analysis and industrial emission measurements. The Testo 350 exhaust gas analyzer is a rugged piece of kit designed to meet the demands of a variety of different measuring and analysis applications. It is also excellently suited for complex data compilation.

The Testo 350 exhaust gas analyzer is made up of two separate units

- The Testo 350 Control Unit (separate product) is used to control emission measurements. It has a clearly structured graphic display and is especially easy to use. There are four different applications in the menu to choose from: burner, gas turbine, motors and user-defined applications. The instructions on the display guide you through the measurement and make the steps leading up to the start of the measurement easier. This saves both time and hassle. The Control Unit can also be used to remote control the Analysis Box when it is not positioned at the exhaust gas pipe or measurement site. This is especially advisable when carrying out work on larger systems.
- The Testo 350 Analysis Box contains the sensor system and the electronics that are needed to perform emission measurements. The Analysis Box comes standard equipped with an O2 gas sensor. You will, however, need to connect at least one more sensor (max. six) to operate the Box. Optional sensors include gas sensors for CO, CO2, NO, NO2, SO2, H2S and CxHy.

The increased measuring range allows you to carry out unlimited measurements even when gas concentrations are high. The increased measuring range (thinning) is automatically activated when gas concentrations are unexpectedly high. The measuring range of a selected sensor can be increased by a certain factor. An opening on the underside of the analyzer gives you access to all the relevant service and wearing parts, i.e. pumps and filters, which can easily be cleaned or replaced. The testo 350 also has numerous diagnosis functions with easy-to-understand readings and information. The exhaust gas analyzer constantly displays the current reading.
The Analysis Box can be controlled by the Control Unit. It can, however, also be operated directly via USB, Bluetooth® 2.0 or CANCase from a PC or notebook. After the Analysis Box has been programmed, it can carry out measurements independently and save the results. It can also transfer the data directly to the Control Unit.
Conducting industrial emission measurements with the Testo 350
The Testo 350 exhaust gas analyzer has been specially designed for carrying out industrial emission measurements in the field. In the tab “Applications" you will find out more about:

- Emission measurements on industrial motors
- Emission measurements on burners
- Emission measurements on gas turbines
- Emission measurements on thermo processes Technical Data

Temperature - NTC
Measuring range -20 to 50 °C
Accuracy ±0.2 °C (-10 to 50 °C)
Resolution 0.1 °C (-20 to 50 °C)
Ambient temperature probe
Temperature - TC Type K (NiCr-Ni)
Measuring range -200 to 1370 °C
Accuracy
±0.4 °C (-100 to 200 °C)
±1 °C (-200 to -100.1 °C)
±1 °C (200.1 to 1370 °C)
Resolution 0.1 °C (-200 to 1370 °C)
T
