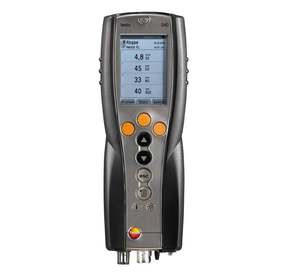

Industrial Gas Combustion Analyser, Testo 340

This item is Price on Application. Pricing from $4,000 GST

Please call 09 579 1990 and ask to speak with one of our Testo Instrumentation team members to purchase.

Part No: 0632 3340 0632.340

- Can measure CO, COlow, NO, NOlow, NO2 or SO2
- Extended measuring range for use in environments with high gas concentrations
- Pre-calibrated gas sensors for quick and easy sensor change
- Integrated pressure difference and air flow measurements for mass flow calculations
- Excludes sampling probe - suitable probes are Modular Probe 500°C 180mm and Modular Probe 500°C 300mm

Emission checks in industry: Professional technology meets practical design. The Testo 340 combustion analyzer is an easy-to-use flue gas analyzer that can be fitted with up to four different gas sensors.

PLEASE NOTE: Your Testo 340 must be fitted with a second gas sensor for it to work. Up to three additional sensors can be fitted.

Delivery Scope

- Testo 340 flue gas analyzer
- Calibration certificate
- Shoulder strap
- Integrated pressure sensor Details

Precise technology: That’s what you want to be able to rely on when you’re working out in the field. But precise technology is nothing if it is not versatile, easy to use and adaptable for use in the field. The Testo 340 flue gas analyzer ticks all these boxes.
The Testo 340 combustion analyzer. For industrial emission measurements and more
Which sensors do you need in the course of your daily work and which measurements do you normally need to carry out? The Testo 340 comes standard-fitted with an O2 sensor and four more sensors (CO, COlow, NO, NOlow, NO2 or SO2) for you to choose from, allowing you to customize your analyzer to suit your individual demands.
The analyzer’s compact design and the reliable technology tucked away inside ensure increased mobility, making it ideal for use in international service operations and for installing or carrying out checks on firing plants or energy production systems. To find out more about the different application possibilities and to see which industrial applications your Testo 340 flue gas analyzer is suitable for just click on the “Applications" tab.
High gas concentrations? No problem with the Testo 340!
The flue gas analyzer has an extended measuring range which allows you to carry out measurements even when gas concentrations are very high (i.e. during industrial flue gas analysis). The extended measuring range (thinning) is activated automatically when high gas concentrations suddenly occur. The demands on the sensor are no different to than when the flue gas analyzer is used in low gas concentrations.

Technical Data

Differential Pressure - Piezoresistive
Measuring range -200 to 200 hPa
Accuracy
±0.5 hPa (-49.9 to 49.9 hPa)
±1.5 % of mv (Remaining Range)
Resolution 0.1 hPa
Absolute Pressure
Measuring range 600 to 1150 hPa
Accuracy ±10 hPa
Resolution 1 hPa
Flue gas O₂
Measuring range 0 to 25 Vol.%
Accuracy ±0.2 Vol.%
Resolution 0.01 Vol.%
Reaction time t₉₀< 20 s
Flue gas (with H₂-compensation)
Measuring range 0 to 10000 ppm
Accuracy
±10 ppm or ±10 % of mv (0 to 200 ppm)
±20 ppm or ±5 % of mv (201 to 2000 ppm)
±10 % of mv (2001 to 10000 ppm)
Resolution 1 ppm
Reaction time t₉₀< 40 s
Flue gas COlow
Measuring range 0 to 500 ppm
Accuracy
±2 ppm (0 to 39.9 ppm)
±5 % of mv (Remaining Range) data corresponds to 20°C ambient temperature. Additional temperature coefficient 0.25% of reading/K.
Resolution 0.1 ppm
Reaction time t₉₀< 40 s
Flue gas NO
Measuring range 0 to 4000 ppm
Accuracy
±5 ppm (0 to 99 ppm)
±5 % of mv (100 to 1999 ppm)
±10 % of mv (2000 to 4000 ppm)
Resolution 1 ppm
Reaction time t₉₀< 30 s
Flue gas Nolow
Measuring range 0 to 300 ppm
Accuracy
±2 ppm (0 to 39.9 ppm)
±5 % of mv (Remaining Range)
Resolution 0.1 ppm
Reaction time t₉₀< 30 s
Flue gas NO₂
Measuring range 0 to 500 ppm
Accuracy
±10 ppm (0
