Smart digital manifold with wireless vacuum and clamp temperature probes plus clamp meter | Testo 570s
All prices are exclusive of GST
Part no 0564 5704
- Long-term measurement with intelligent error analysis in the testo Smart App
- World's longest battery life of up to 360 hours with rechargeable battery (USB-C) and batteries
- Suitable for use with A3 and A2L refrigerants

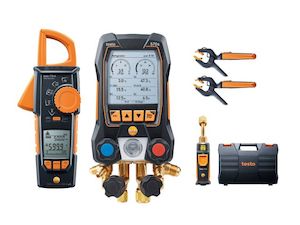

- In the kit: testo 570s digital manifold, 2x testo 115i wireless clamp temperature probes, 1x testo 552i wireless vacuum probe, 1x testo 770-3 TRMS clamp meter and case
Details
Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. The practical kit containing the testo 570s digital manifold with Bluetooth and 4-way valve block together with the wireless temperature and vacuum probes plus clamp meter is ideal for long-term and standard measurements.
The intelligent error analysis in the testo Smart App ensures reliable diagnostics following a long-term measurement, eliminating the need for lengthy searches. And with the world's longest battery life of 360 hours, testo 570s is ideal for long-term measurements, but also for all kinds of short-term applications over the course of a working week. In addition, with a measuring accuracy of 0.25% fs, the manifolds offer maximum precision even at low pressure values.
Delivery Scope
- testo 570s digital 4-way manifold with lithium-ion rechargeable battery
- 2x testo 115i wireless clamp thermometers
- 1x testo 552i wireless vacuum probe
- 1x testo 770-3 TRMS clamp meter
- Transport case
- testo Smart App (free download)
- Instruction manuals Technical Data
Temperature
Measuring range -50 to 150 °C
Accuracy ±0.5 °C
Resolution 0.1 °C
Probe connection 2 x Plug-in (NTC)
Pressure measurement
Measuring range -1 to 60 bar
Accuracy ±0.2 % fs
Resolution 0.01 bar
Probe connection 3 x 7/16" – UNF 1 x 5/8'' – UNF
Overload rel. (low pressure) 65 bar
Overload rel. (high pressure) 65 bar
General technical data
Weight 1 kg
Dimensions 229 x 112 x 71 mm
Operating temperature -20 to 50 °C
Protection class IP54
System requirements requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Auto-off instrument 10 min
Battery life With built-in rechargeable battery:; ≥220 h without Bluetooth®, without illumination; ≥120 h with Bluetooth® and illumination; With 3 AA batteries:; ≥145 h without Bluetooth®, without illumination; ≥75 h with Bluetooth® and illumination
Battery type Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA
Radio range 150 m
Storage temperature -20 to 60 °C
Downloads
Product Brochures
- Data sheet testo 570s (application/pdf, 3.171 KB)
- testo Smart Probes FAQ (application/pdf, 1.115 KB)
Manuals
Instruction manual testo 570s (PDF, 2.203 KB
Instruction manual testo Smart Probes (application/pdf, 1.705 KB)
EU declaration of conformity testo 115i (application/pdf, 50 kb)
Instruction manual testo Smart Probes (application/pdf, 1.705 KB)
Software
PC Software testo DataControl (for testo 400) (v19.1, text/x- , 1 KB
