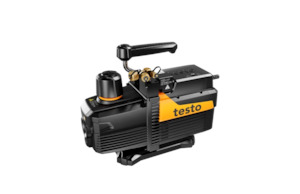

testo 565i - Smart vacuum pump for automated evacuations 7CFM

All prices are exclusive of GST

Part no 0564.5652.04

Features

- Fully automated evacuation process with integrated holding test when used in combination with the testo 552i vacuum probe
- Can be safely used even with flammable class A3 and A2L refrigerants
One app for everything: Configure and monitor measurements and manage data with the testo Smart App
- Easy oil change and sight glass for quick assessment of the oil level
- Non-return valve to prevent loss of vacuum in the event of power failure
- Perfect interaction between workflows thanks to full connectivity to the entire Testo refrigeration portfolio Details

The new testo 565i vacuum pump performs refrigeration system and heat pump evacuations completely automatically. Once the desired vacuum target value is reached, pumping is automatically stopped and a vacuum hold test is initiated at the same time. Foreign gases and moisture can thus be removed safely, and data relating to the system's leak-tightness stored.

The data logging function ensures complete documentation. This allows evacuations to run completely independently - for maximum accuracy and efficiency.

Delivery Scope

- testo 565i Smart Vacuum Pump
- Oil bottle
- Calibration protocol and instruction manual

Technical Data

General technical data

Weight 12 kg
Operating temperature 5 to 40 °C
Standards Oil compatibility: ISO VG 46
Connection 1/4 SAE, 3/8 SAE,1/2 SAE
Interface Bluetooth 5.0 ®
Radio range 30 m
Ultimate vacuum 15 micron
Pump type Rotary vane pump, two-stage
Flow rate 7 CFM / 198 l/min

Downloads

Product Brochures

- Data sheet testo 565i

Manuals

- Instruction manual testo 565i
- UK declaration of conformity testo 565i (7CFM)
