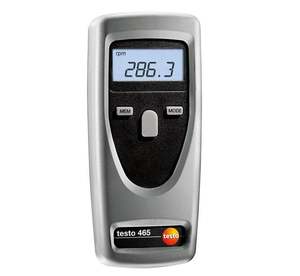

Non-Contact Optical RPM Instrument (Tachometer), Testo 465

ALL PRICES ARE EXCLUSIVE OF GST

Part No.0563 0465

- Extremely easy one-handed operation
- Saves mean/max./min. values, as well as the last measuring value
- Robust tachometer – thanks in particular to the protective case (SoftCase) supplied
- Includes reflective markers

You can use the Testo 465 tachometer for quick and easy rpm measurement on rotating parts such as fans and shafts. Details

With the Testo 465 tachometer, you can perform non-contact rpm measurement using just one hand. This makes the tachometer suitable, for example, for measurements on rotating parts such as fans and shafts. To measure the rpm, simply stick a reflective marker on the measurement object, aim the visible red beam at the marker and measure the rpm. The distance between the tachometer and the measurement object can be up to 600 mm.
A particularly practical feature is the option to save min./max. and mean values, as well as the last measured value. The SoftCase included in the scope of delivery is useful for protecting the tachometer. The scope of delivery also includes reflective markers and a transport case.
Delivery Scope
Testo 465 tachometer incl. plastic transport case, SoftCase protective case, reflective markers and batteries. Technical Data

rpm - Optical
Measuring range 1 to 99999 rpm
Accuracy ±0.02 % of mv
Resolution
0.01 rpm (1 to 99.99 rpm)
0.1 rpm (100 to 999.9 rpm)
1 rpm (1000 to 99999 rpm)
General technical data
Display type LCD
Display size one-line Accessories

- Reflectors for Non-Contact Optical RPM Instruments (Tachometers)

Downloads

Product Brochures

- Product brochure Testo 465 (application/pdf)

Manuals

- Instruction manual Testo 465 (PDF)
- EU declaration of conformity Testo 465 (PDF)
